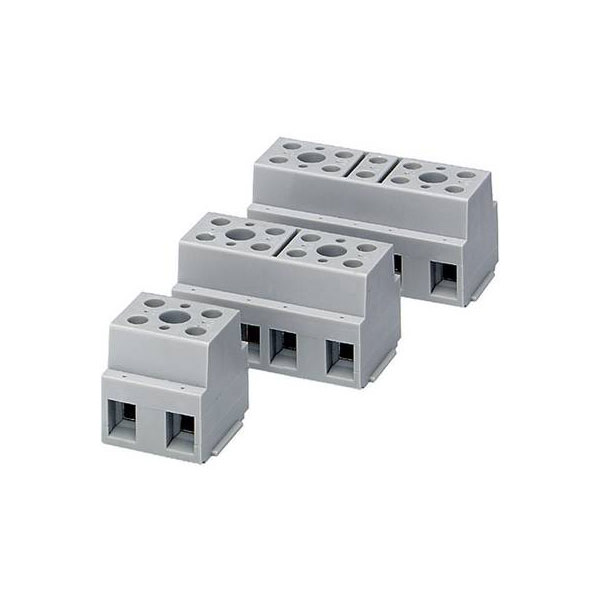

Phoenix Contact 2716716 G 10/3 Grey Device Terminal 3-Pin 6 mm² Direct Fit

The Phoenix Contact appliance connector, model 2716716 G 10/3, features a flexible and fixed connection of -6 mm² suitable for various electrical installations. This grey connector includes three pins, aligning with EU standard terminals for efficient connectivity. Ideal for secure and reliable appliance connections, it ensures high performance in both residential and industrial environments.

Colour	Grey
Current Rating	57A
Type	Appliance connector
Number of Ways	3
Voltage Rating	800V
Closing plate required	true
Connectable conductor cross section fine-strand with cable end sleeve	- - -mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.5 - 10mm²
Connectable conductor cross section multi-wired	0.5 - 10mm²
Connectable conductor cross section solid-core	0.5 - 16mm²
Connection (type)	Screw Terminal
Connections	3
Connector clip features	Mounting hole
Current Rating (A)	57
Depth	N/Amm
Dim	(L x W) 33 mm x 46 mm
Drill hole distance centrically	N/Amm
Explosion-tested version Ex e	false
Halogen free	N/A
Height	N/Amm
Inflammability class of insulation material according to UL94	N/A
Insulation Material	PA
Length	33mm
Length (mm)	33mm
Material (details)	Polyamide
Material insulation body	N/A
Misc Attribute 1	6 connections
Misc Attribute 2	G 10/ 3
Mounting method	Other
Nominal Current	57 A
Number of clamp positions per pole	N/A
Number of pins	3
Number of Poles	3
Operating Temperature	- - -°C
Product Type	Terminal Block
Rated current In	N/AA
Rated voltage	N/AV
Series	G 10
Temperature Range	-60 to +110°C
Transparent	N/A
Type of electrical connection 1	N/A
Type of electrical connection 2	N/A
Voltage Rating (V, V DC)	800 V
Weight (g, g/m)	53.432 g (excl. packaging) / 55.2 g (incl. packaging)
Width	46mm
Width (mm)	46
Wire Gauge	6mm²
Wire protection	Yes
