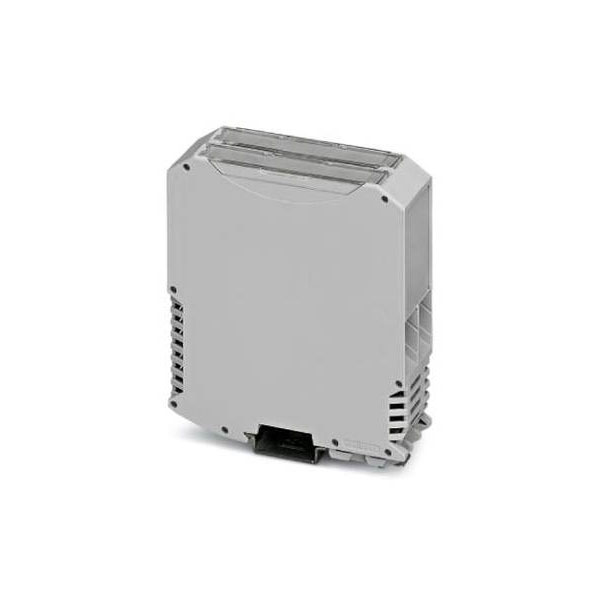

Phoenix Contact 2713706 ME MAX DIN rail casing Polyamide 99x45x114.5mm

The Phoenix Contact ME MAX 45 2-2 KMGY DIN rail casing, made of durable polyamide, measures 99 x 45 x 114.5 mm and is light grey in colour. This casing is designed to securely house electronic components and is typically used in industrial and automation settings. Its robust construction ensures protection and organisation for DIN rail-mounted equipment.

Type	DIN rail casing
Enclosure Height	114.5mm
Enclosure Length	99mm
Enclosure Width	45mm
Colour	Light grey
Protection Rating	None
Degree of protection (IP)	IP20
Degree of protection (NEMA)	N/A
Depth	113.65mm
Dim	(L x W x H) 99 x 45 x 114.5 mm
Height	99mm
Housing connectable	N/A
Material	Polyamide
Misc Attribute 1	Complete housing with inserted din rail bus connector
Misc Attribute 2	ME MAX 45 2-2 KMGY
Operating Temperature	-40 - 105°C
Pins	32
RAL-number	N/A
Suitable for rail mounting	true
Surface finishing	N/A
Type of enclosure	N/A
Wall mounting possible	false
Width	45.2mm
Width in number of modular spacings	N/A
With integrated PCB-mounting connection system	false
With screening	N/A
With ventilation slots	true
