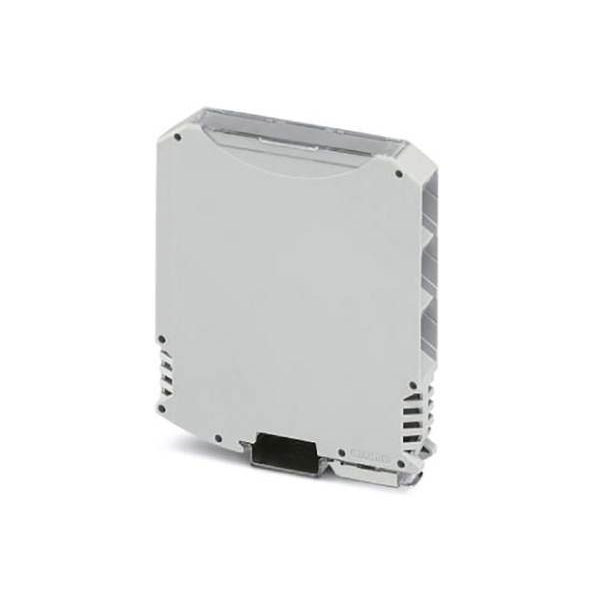

Phoenix Contact 2713612 ME MAX DIN rail casing 99x17.5x114.5 grey

The Phoenix Contact ME MAX 17.5 3-3 KMGY is a DIN rail casing made from light grey polyamide and measures 99 x 17.5 x 114.5 mm. This product is designed for housing and protecting electronic components in industrial environments. It is commonly used in applications requiring secure and reliable mounting of devices on standard DIN rails.

Type	DIN rail casing
Enclosure Height	114.5mm
Enclosure Length	99mm
Enclosure Width	17.5mm
Colour	Light grey
Protection Rating	None
Degree of protection (IP)	IP20
Degree of protection (NEMA)	N/A
Depth	113.65mm
Dim	(L x W x H) 99 x 17.5 x 114.5 mm
Height	99mm
Housing connectable	N/A
Material	Polyamide
Misc Attribute 1	ME MAX 17,5 3-3 KMGY
Misc Attribute 2	Complete housing
Operating Temperature	-40 - 105°C
Pins	18
RAL-number	N/A
Suitable for rail mounting	true
Surface finishing	N/A
Type of enclosure	N/A
Wall mounting possible	false
Width	17.6mm
Width in number of modular spacings	N/A
With integrated PCB-mounting connection system	false
With screening	N/A
With ventilation slots	true
