Phoenix Contact 2297031 Reversing Contactor 24V DC 2.4A 3-Phase Motor Relay

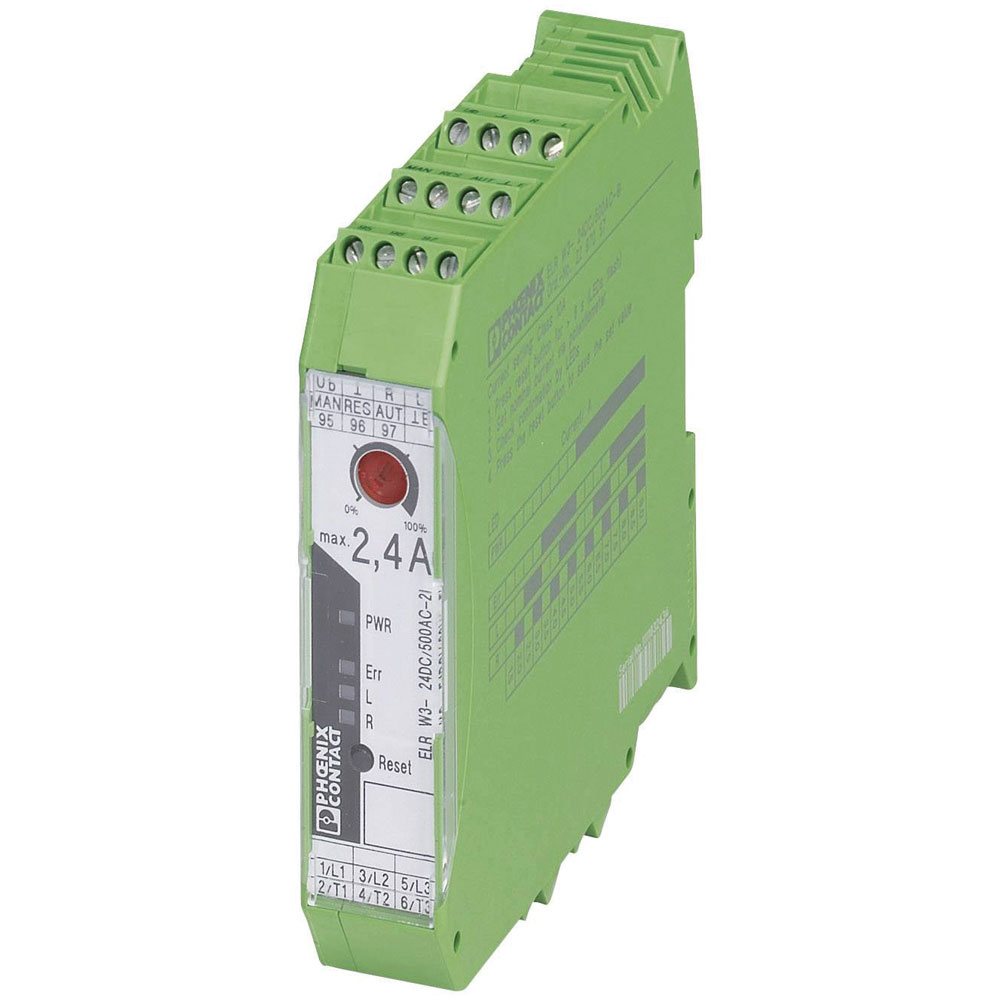

Image Representative of Range

Phoenix Contact 2297031 Reversing Contactor 24V DC 2.4A 3-Phase Motor Relay

Phoenix Contact
Standard range
Order Code:

12-7065

Brand: Phoenix Contact MPN: 2297031 EAN-13: 4046356167864
Qty Unit Price (Ex VAT)
1+ £142.25
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
13 in stock, despatched in 4 working days

The Phoenix Contact ELR W3-24DC/500AC-2I reversing contactor operates at 24 V DC and 2.4 A. It is a compact component measuring 22.5 x 99 x 114.5 mm, ideal for controlling 3-phase loads. This reversing contactor is typically used in industrial settings for efficient motor control and power management.
Type Reversing contactor
Ambient temperature -25 - +70°C
Connection Screw terminal
Control voltage (max.) 30V DC
Control voltage (min.) 19.2V DC
Control voltage range 19.2 - 30 V DC
Current load 2.4A
Depth 114.5mm
Dim (W x H x D) 99 x 22.5 x 114.5 mm
Height 22.5mm
IP rating IP20
Max. temperature +70°C
Min. temperature -25°C
Misc Attribute 1 ELR W3-230AC/500AC-2I
Misc Attribute 2 ELR W3-24DC/500AC-2I
Misc Attribute 3 Reversing contactor
Nominal voltage 24V DC
Operating voltage 24V DC
Switching voltage (max.) 550V AC
Switching voltage (min.) 42V AC
Width 99mm
