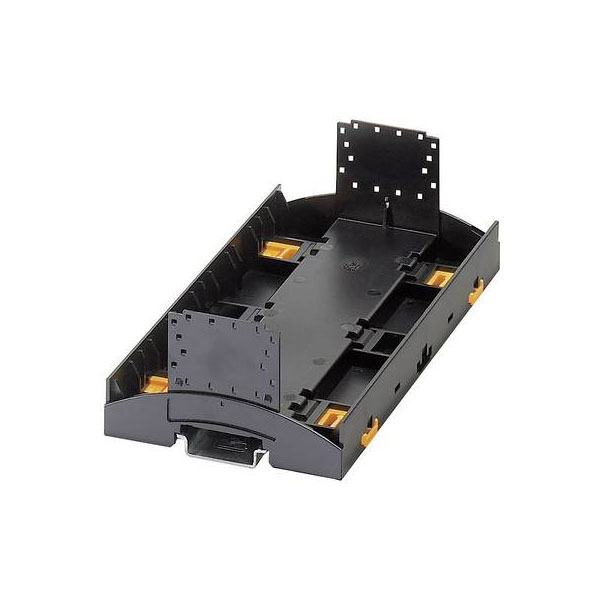

Phoenix Contact 2278500 BC 161.6 Polycarbonate DIN rail casing black

The Phoenix Contact BC 161,6 UT HBUS BK is a lower section DIN rail casing made of polycarbonate, measuring 89.7 x 161.6 x 62.6 mm. It features a sleek black finish and is designed for housing various electronic components. Ideal for use in top hat rail systems, this casing provides a durable and functional solution for electrical cabinets.

Type	DIN rail casing (bottom part)
Enclosure Height	62.6mm
Enclosure Length	89.7mm
Enclosure Width	161.6mm
Colour	Black
Protection Rating	None
Compatible with (details)	BC 161.6
Depth	48.9mm
Dim	(L x W x H) 89.7 x 161.6 x 62.6 mm
Height	89.7mm
Housing connectable	false
Material	Polycarbonate
Misc Attribute 1	BC 161,6 UT HBUS BK
Misc Attribute 2	BC 161.6 UT HBUS BK
Misc Attribute 3	Lower section
RAL-number	9005
Suitable for rail mounting	N/A
Surface finishing	Other
Type of enclosure	Closed
Wall mounting possible	N/A
Width	161.6mm
With integrated PCB-mounting connection system	N/A
