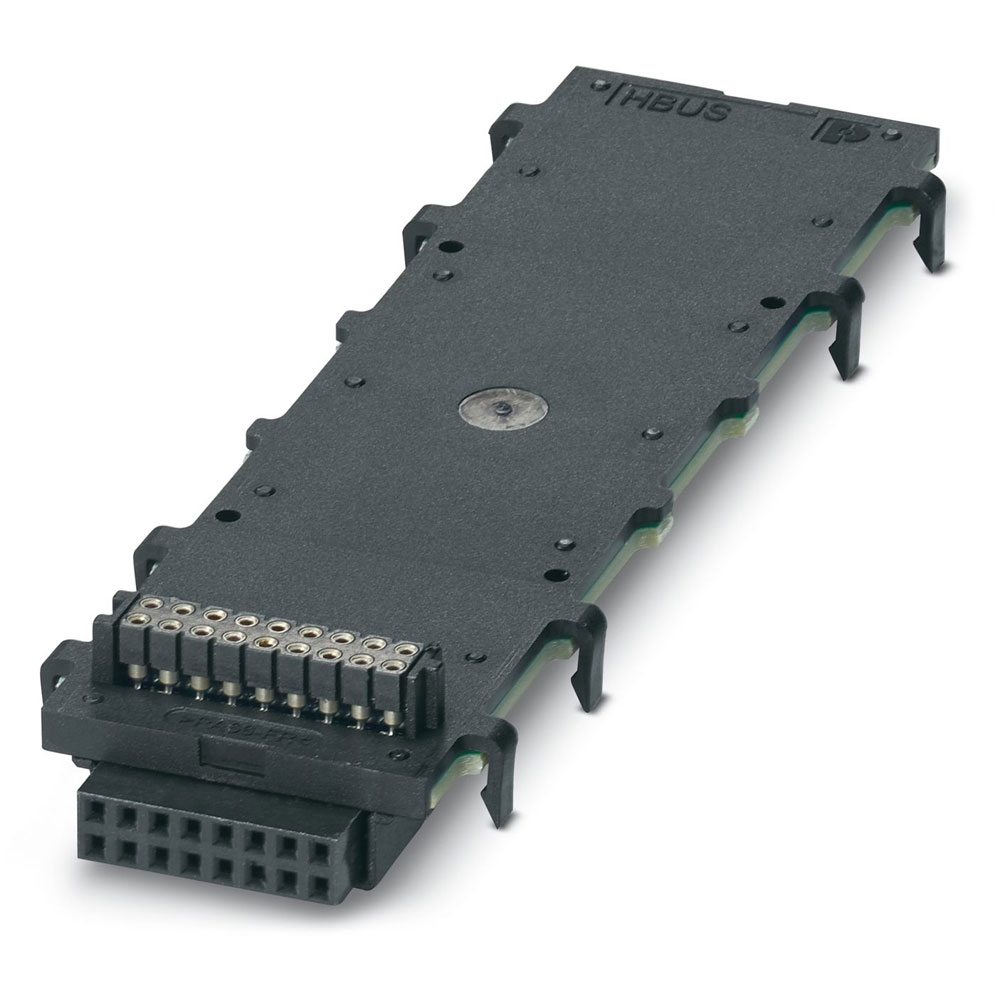

Phoenix Contact 2202876 HBUS 107,6-16P-1S BK P1 DIN Rail Bus Connector

MPN: 2202876
Brand: Phoenix Contact
EAN-13: 4055626244303
Order Code: 30-0589
Country of Origin: Germany

RoHS Compliant
Free UK shipping available

View Full Product Range (4)

Inc VAT

Qty	Was	Unit Price (Ex VAT)
1+	£20.58	£20.39

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Despatched same day - 2 in stockContact us for additional stock

Product Details
Product Range
Data Sheets
Quick Quote

A Phoenix Contact 2202876 HBUS BK DIN Rail Bus connector to connect BC modules on the DIN rail. This product is suitable for BC DEV-KITS.

Product Type: DIN Rail Connector
Product Family: BC 107,6
Number of Positions: 16
Pitch: 2.54mm

Type	DIN Rail Bus Connector
Enclosure Height	13.55mm
Enclosure Length	37.1mm
Enclosure Width	112.45mm
Colour	Black
Protection Rating	None
Angle contact/conductor connection	Other
Coating housing	N/A
Connectable cable type	Tubular cable
Connectable conductor cross section fine-strand with cable end sleeve	- - -mm²
Connectable conductor cross section fine-strand without cable end sleeve	- - -mm²
Connectable conductor cross section multi-wired	- - -mm²
Connectable conductor cross section solid-core	- - -mm²
Contact Type	N/A
Degree of protection (IP), mounted	N/A
External Features	Gold Plated Contacts
Housing Colour	Black
Housing Material	Other
Inflammability class of insulation material according to UL94	V0
Material	PA
Material contact	Copper
Material insulation body	Polyamide (PA)
Material of contact surface	N/A
Modular spacing connections	2.54mm
Modular spacing contacts	2.54mm
Number of plug-in contact rows	N/A
Number of Poles	16
Operating Temperature	-40 - 105°C
Overvoltage category	III
Pollution degree	2
Rated current In	3A
Rated Surge Voltage	0.8kV
Rated voltage	30V
Type of connection	Other
Type of electric connection	N/A
With protective conductor	N/A
