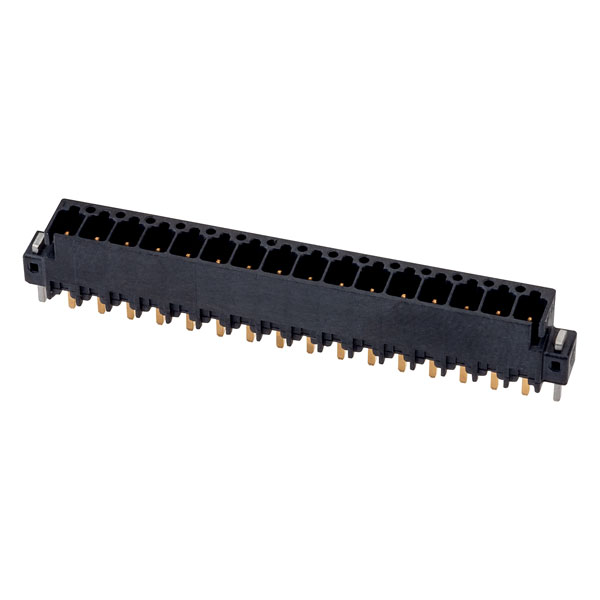

Phoenix Contact 1848008 MCV 0,5/16-G-2,54P20THR PCB Header 6A 16 Way 2.54mm - 16-way 6A, 160V, 2.54mm pitch vertical PCB mounting feed-through headers from Phoenix Contact's MCV 0,5/ G-2,54P20THR series.
PCB headers, nominal cross section: 0.5 mm2, colour: black, nominal current: 6 A, rated voltage (III/2): 160 V, contact surface: Au, contact connection type: Pin, number of potentials: 16, number of rows: 1, number of positions: 16, number of connections: 16, product range: MCV 0,5/..-G-THR, pitch: 2.54 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON FMC 0,5, Pin connector pattern alignment: Standard, locking: without, mounting: without, type of packaging: packed in cardboard
- No. of ways: 16
- Supplied in a sample pack of 5 pieces
- Nominal current: 6A
- Rated voltage: 160V
- Pitch: 2.54mm
- Length: 4.85mm
- Width: 45.22mm
- Height: 9.1mm
- Housing colour: black
- Through-hole PCB mounting with linear single pinning
- Designed for integration into the SMT soldering process
- Additional solder anchors reduce the mechanical strain on the soldering pads
- Gold-plated contacts ensure transfer quality remains stable over the long term
- Vertical connection enables multi-row arrangement on the PCB
| Pitch |
2.54mm |
| No of Ways Per Row |
16 |
| No. of Rows |
1 |
| Mounting Type |
PCB |
| Contact Finish |
Gold Plated |
| Mounting Direction |
Vertical |
