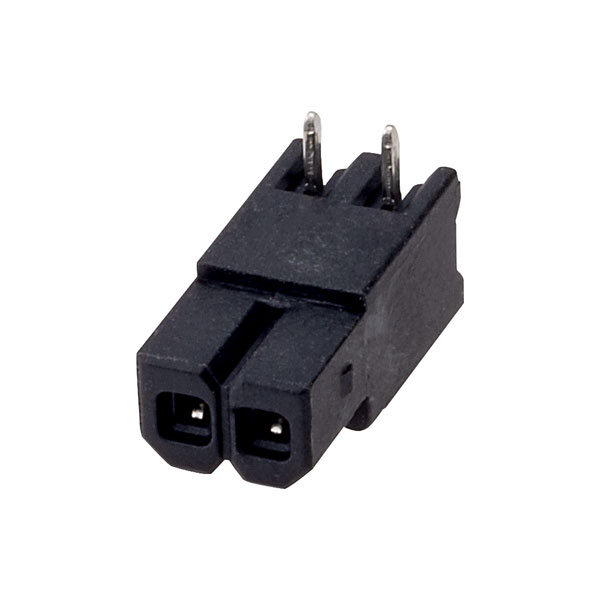

Phoenix Contact 1820851 PTSM 0,5/ 2-HHI-2,5-THR PCB Header 6A 2 Way 2.5mm (5)

Discontinued

2-way, single row, 6A, 160V, 2.5mm pitch horizontal PCB mounting feed-through female headers from Phoenix Contact's PTSM 0,5/ HHI-2,5-THR series.

Supplied as a SAMPLE SET with 5 items in a belt section. When used as part of a soldering process, please use items without SAMPLE marking.

No. of ways: 2
No. of rows: 1
Total number of connections: 2
Supplied in a 5-piece sample set
Nominal current: 6A
Rated voltage: 160V
Pitch: 2.5mm
Length: 12mm
Width: 5.5mm
Height: 5mm
Housing colour: black
Through-hole PCB mounting with linear pinning
Designed for integration into the SMT soldering process
Supplied in tape-on-reel packing according to IEC 60286-3 for automated mounting
Inverted header with socket contacts for touch-proof device outputs or PCB/PCB connections
Phoenix Contact type PTSM 0,5/ 2-HHI-2,5-THR
Phoenix Contact part no. 1820851
