Phoenix Contact 1803646 MINI COMBICON 9-pin socket 3.81 mm spacing

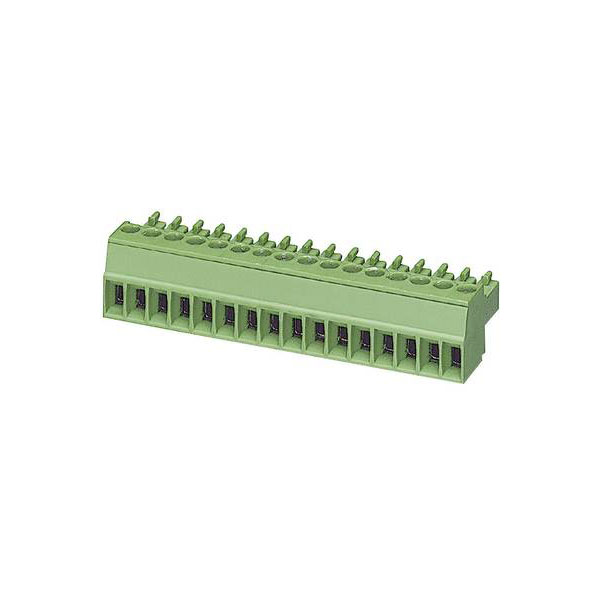

Image Representative of Range

Phoenix Contact 1803646 MINI COMBICON 9-pin socket 3.81 mm spacing

Phoenix Contact
Order Code:

06-1991

Brand: Phoenix Contact MPN: 1803646 EAN-13: 2050000437656
Qty Unit Price (Ex VAT)
1+ £5.06
10+ £4.54
25+ £4.10
50+ £4.06
100+ £4.04
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
8 in stock, despatched in 4 working days

The Phoenix Contact socket housing cable has 9 pins and a contact spacing of 3.81 mm. It is rated for a nominal current of 8 A and features a screw-type connector for secure connections. Typical applications include use in electrical components, connectors, and clamps for reliable connectivity solutions.
Body Style Socket, straight
Pitch 3.81mm
No of Ways Per Row 9
No. of Rows 1
Current Rating 8A
Colour Green
Wire Gauge (AWG) 16AWG
Wire Gauge (mm²) 1.5mm²
A 30.48mm
AWG (min.) 28
Case Material PA
Connector cross section 1.15mm²
Connector System wire-to-board
Contact Material Tin plated
Dim (L x W x H) 11.10 x 35.08 x 16.10 mm
Height 16.10mm
Industrial packaging Yes
Length 11.10mm
max. cross section 1.5mm²
Min. cross section 0.14mm²
Misc Attribute MC 1,5/ 9-ST-3,81
Nominal Voltage 160V
Series MC
Stripping length (max.) 7.00mm
Total number of pins 9
Width 35.08mm
