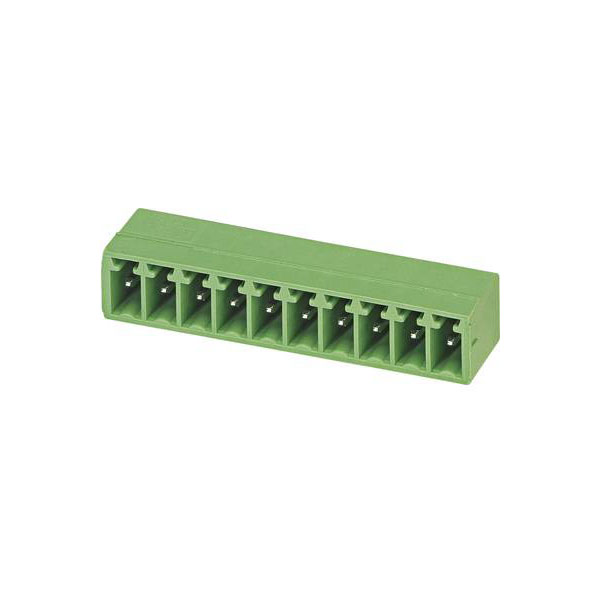

Phoenix Contact 1803358 MINI COMBICON 10-pin housing 3.81mm pitch

Phoenix Contact's pin housing PCB features 10 pins with 3.81 mm spacing, supporting a nominal current of 8 A. This connector is suitable for use in electronic components and basic units where secure and reliable connections are paramount. It is ideal for various industrial applications requiring robust and precise electrical connections.

Body Style	Plug, horizontal mount
Pitch	3.81mm
No of Ways Per Row	10
No. of Rows	1
Current Rating	8A
Colour	Green
Wire Gauge (AWG)	N/A
Wire Gauge (mm²)	N/A
A	34.29mm
Angle PCB/contact	N/A
Connection	Print
Connector model	Other
Connector orientation	Parallel (to the PCB)
Connector System	wire-to-board
Contact Material	Tin plated
Contact Type	Pin
Diameter connection pin	1.2mm
Dim	(L x W x H) 9.20 x 39.49 x 10.65 mm
Height	10.65mm
Housing Colour	Green
Industrial packaging	Yes
Inflammability class of insulation material according to UL94	V0
Length	9.20mm
Length pin	3.4mm
Material insulation body	Other
Material of contact surface	Other
Misc Attribute	MC 1,5/10-G-3,81
Modular spacing connections	3.81mm
Modular spacing contacts	3.81mm
Nominal Voltage	160V
Number of plug-in contact rows	1
Number of Poles	10
Operating Temperature	-40 - 100°C
Overvoltage category	III
Pollution degree	2
Rated current In	8A
Rated Surge Voltage	2.5kV
Rated voltage	160V
Series	MC
Suitable for PCB thickness	N/Amm
Total number of pins	10
Type of banding	Carton (for SMD)
Type of connection	N/A
Type of electric connection	Other
Type of fastening	Other
Type of PCB fastening	N/A
Width	39.49mm
