Phoenix Contact 1803303 MINI COMBICON pin housing 5 pins 3.81mm spacing

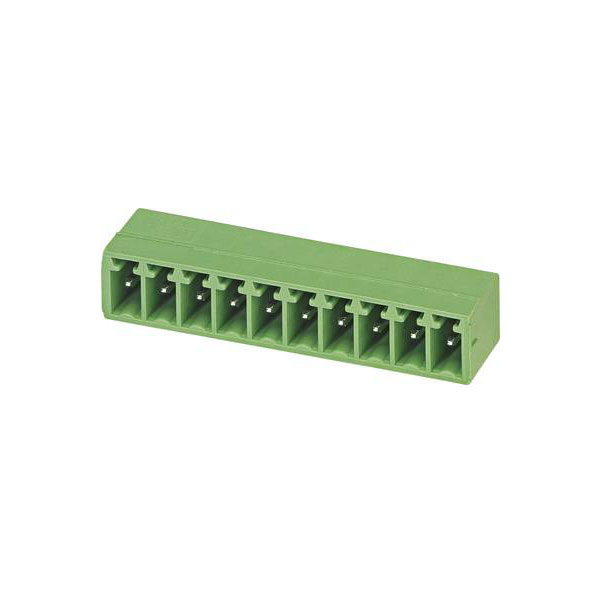

Image Representative of Range

Phoenix Contact 1803303 MINI COMBICON pin housing 5 pins 3.81mm spacing

Phoenix Contact
Order Code:

06-1957

Brand: Phoenix Contact MPN: 1803303 EAN-13: 2050000437793
Qty Unit Price (Ex VAT)
5+ £0.840
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
264 available to back orderBack-order availability date - 10/01/2026

Phoenix Contact's pin housing PCB, model number 1803303, features five pins with a contact spacing of 3.81 mm. This component can handle a nominal current of 8 A, making it suitable for a variety of electrical connections. It is commonly used in electronic assemblies for secure and efficient conductor connections.
No. of Rows 1
Current Rating 8A
Colour Green
A 15.24mm
Connection Print
Connector orientation Parallel (to the PCB)
Connector system wire-to-board
Connector Type Plug, horizontal mount
Contact Material Tin plated
CS 3.81mm
Dim (L x W x H) 9.20 x 20.44 x 10.65 mm
Height 10.65mm
Industrial packaging Yes
Length 9.20mm
Misc Attribute MC 1,5/ 5-G-3,81
Nominal Voltage 160V
Pins per row 5
Series MC
Total number of pins 5
Type Pin housing PCB
Width 20.44mm
