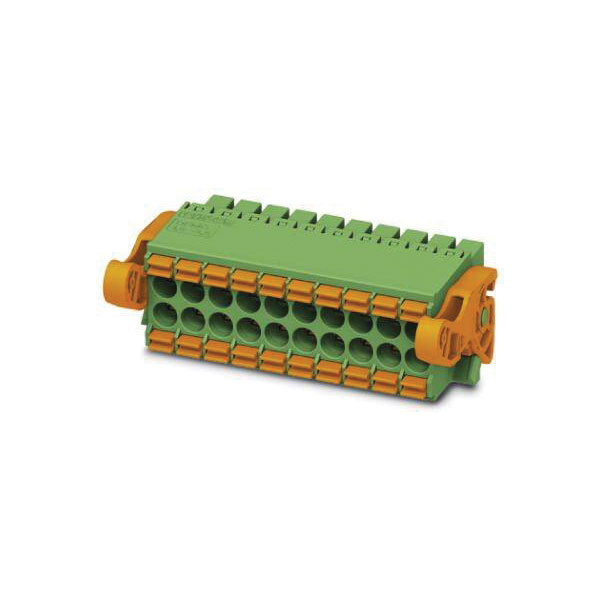

Phoenix Contact 1792728 Socket housing 22-pin 5 mm spacing cable 1pc

Phoenix Contact's socket housing cable, catalogue number 1792728, features 22 pins with a 5 mm contact spacing. This PCB plug part is designed for robust and reliable connections in industrial and electronic applications. It is ideal for securely housing wiring in complex electrical systems.

Body Style	Plug, horizontal mount
Pitch	5mm
No of Ways Per Row	22
No. of Rows	1
Current Rating	12A
Colour	Green
Wire Gauge (AWG)	N/A
Wire Gauge (mm²)	N/A
Angle contact/conductor connection	Other
AWG (min.)	24
Coating housing	N/A
Connectable cable type	Tubular cable
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 2.5mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.2 - 2.5mm²
Connectable conductor cross section multi-wired	- - -mm²
Connectable conductor cross section solid-core	0.2 - 2.5mm²
Connection	Screws
Connector contact surface	Tin
Contact Material	Cu-alloy, tin plated
Contact Type	Bus
Degree of protection (IP), mounted	N/A
Dim	(L x W x H) 12.5 x 110 x 26 mm
Height	26mm
Housing Colour	Green
Housing Material	Other
Inflammability class of insulation material according to UL94	V0
Insulation Material	PA
Length	12.5mm
Material contact	Copper
Material insulation body	Polyamide (PA)
Material of contact surface	Tin
max. cross section	2.5mm²
Max. temperature	+100°C
Min. cross section	0.2mm²
Min. temperature	-40°C
Misc Attribute	MVSTBW 2,5/22-ST
Modular spacing connections	5mm
Modular spacing contacts	5mm
Nominal Voltage	320V
Number of plug-in contact rows	1
Number of Poles	22
Operating Temperature	-40 - 100°C
Overvoltage category	III
Pollution degree	2
Rated current In	12A
Rated Surge Voltage	4kV
Rated voltage	320V
Stripping length (max.)	7mm
Thread Size	M3
Total number of pins	22
Type of connection	Other
Type of electric connection	Screw connection
Width	110mm
With protective conductor	N/A
