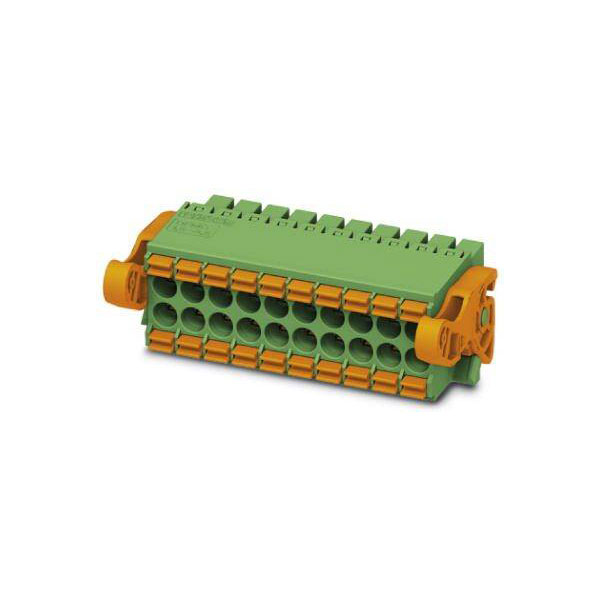

Phoenix Contact 1790577 socket housing 11 pins 3.5 mm spacing tool-free

The Phoenix Contact socket housing cable, model 1790577, features 11 pins with a contact spacing of 3.5 mm. It is designed for secure connections in electronic and PCB applications. Ideal for industrial environments, it ensures reliable signal and power transmission.

Body Style	Plug, horizontal mount
Pitch	3.5mm
No of Ways Per Row	11
No. of Rows	2
Current Rating	8A
Colour	Green
Wire Gauge (AWG)	16
Wire Gauge (mm²)	N/A
Angle contact/conductor connection	Other
AWG (min.)	24
Coating housing	N/A
Connectable cable type	Tubular cable
Connectable conductor cross section fine-strand with cable end sleeve	0.14 - 0.75mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.2 - 1.5mm²
Connectable conductor cross section multi-wired	- - -mm²
Connectable conductor cross section solid-core	0.2 - 1.5mm²
Connector contact surface	Tin
Contact Material	Cu-alloy, tin plated
Contact Type	Bus
Degree of protection (IP), mounted	N/A
Dim	(L x W x H) 27.79 x 45.4 x 13.25 mm
Height	13.25mm
Housing colour	Green
Housing Material	Other
Inflammability class of insulation material according to UL94	V0
Insulation Material	PA
Length	27.79mm
Material contact	Copper
Material insulation body	Polyamide (PA)
Material of contact surface	Tin
max. cross section	1.5mm²
Maximum Temperature	+100°C
Min. cross section	0.2mm²
Min. temperature	-40°C
Misc Attribute	DFMC 1,5/11-ST-3,5-LR
Modular spacing connections	3.5mm
Modular spacing contacts	3.5mm
Nominal Voltage	160V
Number of plug-in contact rows	2
Number of Poles	11
Operating Temperature	-40 - 105°C
Overvoltage category	III
Pollution degree	2
Rated current In	8A
Rated Surge Voltage	2.5kV
Rated voltage	160V
Stripping length (max.)	10mm
Total number of pins	11
Type	Socket housing cable
Type of connection	Other
Type of electric connection	Spring clamp connection
Width	45.4mm
With protective conductor	N/A
