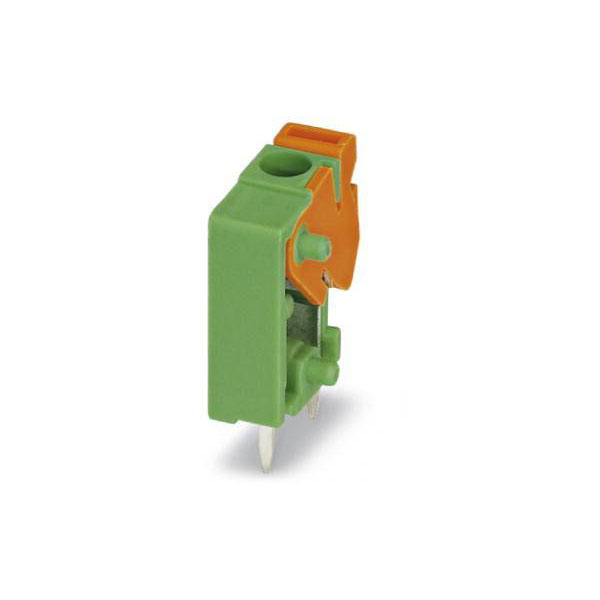

Phoenix Contact 1790319 PCB Terminal block 1.50 mm² 250 pcs green

Phoenix Contact manufactures the 1790319 spring-loaded terminal designed for 1.50 mm² wires with a single pin, coloured green. This component is ideal for industrial applications where secure and efficient electrical connectivity is required. Typical uses include printed circuit board connections and screw terminal blocks, making it suitable for various electronics assemblies.

Pitch	5.08mm
No of Ways Per Row	1
No. of Rows	1
Current Rating	15A
Colour	Green
Wire Gauge (AWG)	N/A
Wire Gauge (mm²)	N/A
Actuation direction	Parallel (to the PCB)
Angle PCB/conductor connection	N/A
AWG (min.)	24
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 1.5mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.2 - 1.5mm²
Connectable conductor cross section multi-wired	1.5 - 1.5mm²
Connectable conductor cross section solid-core	0.2 - 1.5mm²
Connection type conductor	Spring clamp connection
Connection type PCB	Soldering connection
Connector orientation	Perpendicular (to the PCB)
Contact Material	Copper alloy
Cross section (flexible) (min.)	0.20mm²
Cross section (inflexible) (min.)	0.20mm²
Degree of protection (IP), mounted	N/A
Diameter connection pin	N/Amm
Enclosure material	Polyamide 6.6
Height	12.70mm
Housing Colour	Green
Industrial packaging	Yes
Inflammability class of insulation material according to UL94	V0
Length	5.08mm
Length pin	3.4mm
Material connection surface	Tin
Material insulation body	Other
Min. stripping length	6mm
Misc Attribute	FFKDS/V1-5,08
Modular spacing connections	5.08mm
Nominal Voltage	320V
Number of electrical connections	1
Number of levels	1
Number of Pins	1
Operating Temperature	-40 - 105°C
Overvoltage category	III
Pollution degree	2
Rated current In	15A
Rated Surge Voltage	4kV
Rated voltage	400V
Series	FFKDS(A)/V1
Stripping length (max.)	10mm
Type of banding	Carton (for SMD)
Type of fastening	Solder
Type of PCB fastening	Connecting contact
Width	17.00mm
Wire protection	Yes
