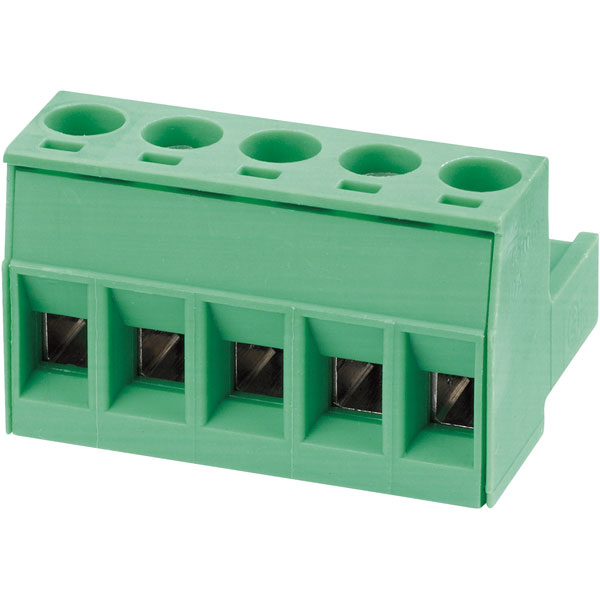

Phoenix Contact 1754504 5-Way PCB Screw Connector 5mm 12A Green

Phoenix Contact PCB 12A angled screw connectors with 5mm pitch and 5 poles.

• Colour green
• Wire size AWG 24-12
• Plug-in direction parallel to conductor axis

Body Style	Plug, horizontal mount
Pitch	5mm
No. of Rows	1
Current Rating	12A
Colour	Green
Wire Gauge (AWG)	N/A
Wire Gauge (mm²)	N/A
Angle contact/conductor connection	Other
Coating housing	N/A
Connectable cable type	Tubular cable
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 2.5mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.2 - 2.5mm²
Connectable conductor cross section multi-wired	- - -mm²
Connectable conductor cross section solid-core	0.2 - 2.5mm²
Contact Type	Bus
Degree of protection (IP), mounted	N/A
Housing Colour	Green
Housing Material	Other
Inflammability class of insulation material according to UL94	V0
Material contact	Copper
Material insulation body	Polyamide (PA)
Material of contact surface	Tin
Modular spacing connections	5mm
Modular spacing contacts	5mm
Number of plug-in contact rows	1
Number of Poles	5
Operating Temperature	-40 - 100°C
Overvoltage category	III
Pollution degree	2
Rated current In	12A
Rated Surge Voltage	4kV
Rated voltage	320V
Type of connection	Other
Type of electric connection	Screw connection
With protective conductor	N/A
