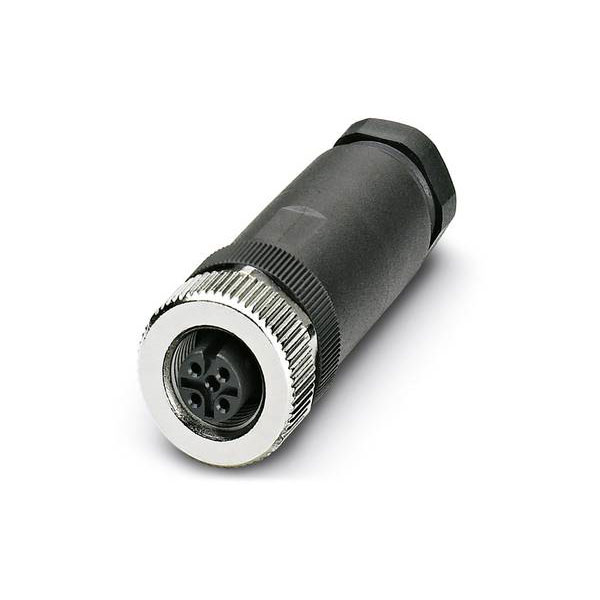

Phoenix Contact 1696439 SACC Sensor Connector 4-Pos M12 A-Coded Straight

The SACC-M12FS-4CON-PG 9-M 1696439 by Phoenix Contact is a robust plug-in connector designed for sensor and actuator connections with a reliable screw connection. It belongs to the PLUSCON range, specifically for M12 plug/sockets, making it ideal for industrial automation systems that require durable and dependable cabling solutions. This connector is commonly used in applications involving the transmission of signals between sensors, actuators, and control systems to ensure efficient communication in automation tasks.

Connector 1	M12
Connector 2	Customisable
Colour	Multicolour
Type	Sensor connector
Ambient temperature	-40 - 85°C
Coating housing	Other
Coding	A
Conductor Cross Section	0.75mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 0.75mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.25 - 0.75mm²
Connectable conductor cross section multi-wired	0.25 - 0.75mm²
Connectable conductor cross section solid-core	0.25 - 0.75mm²
Connection	Screw terminal
Contact Type	Other
Degree of protection (IP), mounted	IP67
Diameter connector	N/Amm
For cable outer diameter	- - -mm
Housing Material	Plastic
Inflammability class of insulation material according to UL94	HB
Material of contact surface	Other
Material thread ring	Other
Min. number of insertion cycles	50
Misc Attribute	SACC-M12FS-4CON-PG 9-M
Nominal Current	4A
Nominal Voltage	250V
Number of control contacts	4
Number of data contacts	0
Number of power contacts	0
Overvoltage category	II
Pollution degree	3
Rated current In	4A
Rated voltage	250V
Screened	false
Thread size M	N/A
Thread Type	M12
Type of electric connection	Screw connection
Type of housing	Straight
Type of locking	Other
With protective conductor	false
With status indication	false
