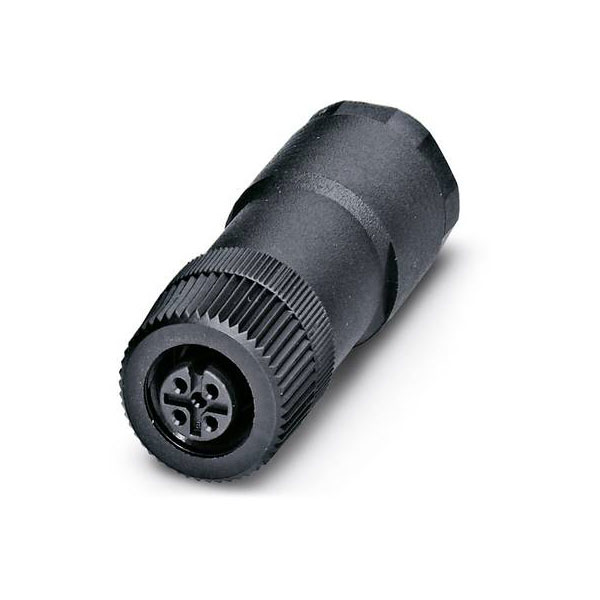

The Phoenix Contact plug-in connector SACC-M12FS-5CON-PG11-DUO is a sensor/actuator connector designed for robust industrial applications. It features an M12 female socket with five contacts, suitable for reliable signal transmission. This connector is commonly used in automation and control systems for seamless integration of sensors and actuators.
| Connector 1 |
M12 |
| Connector 2 |
Customisable |
| Colour |
Multicolour |
| Type |
Sensor connector |
| Ambient temperature |
-40 - 85°C |
| Coating housing |
Other |
| Coding |
A |
| Conductor Cross Section |
0.75mm² |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.25 - 0.75mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.25 - 0.75mm² |
| Connectable conductor cross section multi-wired |
0.25 - 0.75mm² |
| Connectable conductor cross section solid-core |
0.25 - 0.75mm² |
| Connection |
Screw terminal |
| Contact Type |
Other |
| Degree of protection (IP), mounted |
IP67 |
| Diameter connector |
N/Amm |
| For cable outer diameter |
- - -mm |
| Housing Material |
Plastic |
| Inflammability class of insulation material according to UL94 |
N/A |
| IP Rating |
IP67 |
| Material of contact surface |
Other |
| Material thread ring |
Plastic |
| Min. number of insertion cycles |
50 |
| Misc Attribute |
SACC-M12FS-5CON-PG11-DUO |
| Nominal Current |
4A |
| Number of control contacts |
5 |
| Number of data contacts |
0 |
| Number of power contacts |
0 |
| Overvoltage category |
II |
| Pollution degree |
3 |
| Rated current In |
4A |
| Rated voltage |
48V |
| Screened |
false |
| Thread size M |
N/A |
| Thread Type |
M12 |
| Type of electric connection |
Screw connection |
| Type of housing |
Straight |
| Type of locking |
Other |
| With protective conductor |
false |
| With status indication |
false |
