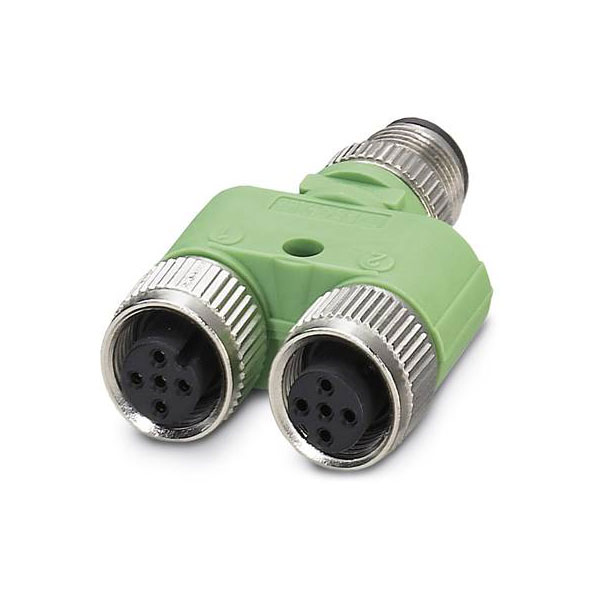

Phoenix Contact 1683468 Y Distributor M12 Plug to 2x M12 Socket Straight

Phoenix Contact manufactures the Y distributor SAC-5P-M12Y/2XM12FS VP 1683468, designed for sensor/actuator splitting and adapting. This industrial goods product features a robust 5-pin M12 connection, making it suitable for reliable use in harsh environments. It is typically used in automation systems to streamline connections between different devices.

Connector 1	M12
Colour	Green
Type	Sensor connector
Ambient temperature	90 - 90°C
Coding	A
Contact Type	N/A
Degree of protection (IP), mounted	IP65
Housing Material	Other
Industrial packaging	Yes
Inflammability class of insulation material according to UL94	HB
IP Rating	IP65, IP67
Material	CuZn
Material of contact surface	Nickel/gold
Material thread ring	Other
Maximum Temperature	-25°C
Min. temperature	+90°C
Misc Attribute	SAC-5P-M12Y/2XM12FS VP
Model	Y-adaptor
Nominal Current	4A
Number of Poles	N/A
Operating Temperature	-25 - 90°C
Pollution degree	1
Rated current In	4A
Rated voltage	48V
Screened	false
Thread Type	M12
