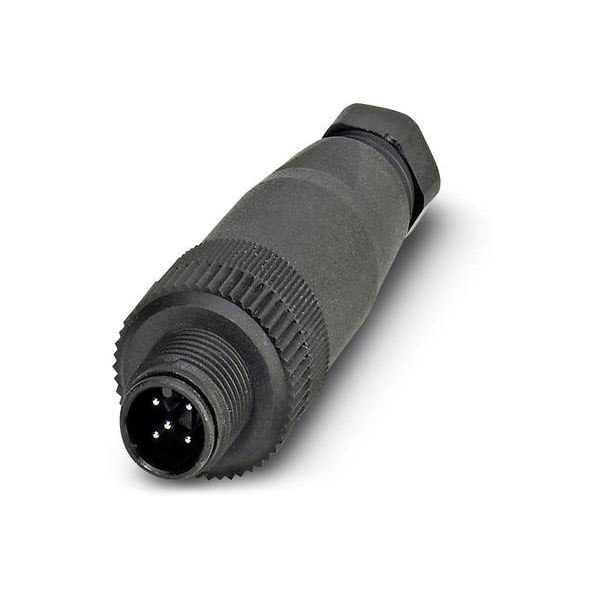

Phoenix Contact 1662256 Plug-in Connector M12 5-pos. A-coded Male Straight

Phoenix Contact manufactures the SACC-M12MS-5CON-PG 7 connector, known for its robust construction and reliable performance. This plug-in connector features secure sensor/actuator connectivity, suitable for industrial automation systems. It is typically used in applications requiring high durability and efficient signal transmission.

Connector 1	M12
Connector 2	Customisable
Colour	Multicolour
Type	Sensor connector
Ambient temperature	-40 - 85°C
Coating housing	Other
Coding	A
Conductor Cross Section	0.75mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 0.75mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.25 - 0.75mm²
Connectable conductor cross section multi-wired	0.25 - 0.75mm²
Connectable conductor cross section solid-core	0.25 - 0.75mm²
Connection	Screw terminal
Contact Type	Other
Degree of protection (IP), mounted	IP67
Diameter connector	N/Amm
For cable outer diameter	- - -mm
Housing Material	Plastic
Inflammability class of insulation material according to UL94	HB
Material of contact surface	Other
Material thread ring	Plastic
Min. number of insertion cycles	50
Misc Attribute	SACC-M12MS-5CON-PG 7
Nominal Current	4A
Number of control contacts	5
Number of data contacts	0
Number of power contacts	0
Overvoltage category	II
Pollution degree	3
Rated current In	4A
Rated voltage	48V
Screened	false
Thread size M	N/A
Thread Type	M12
Type of electric connection	Screw connection
Type of housing	Straight
Type of locking	Other
With protective conductor	false
With status indication	false
