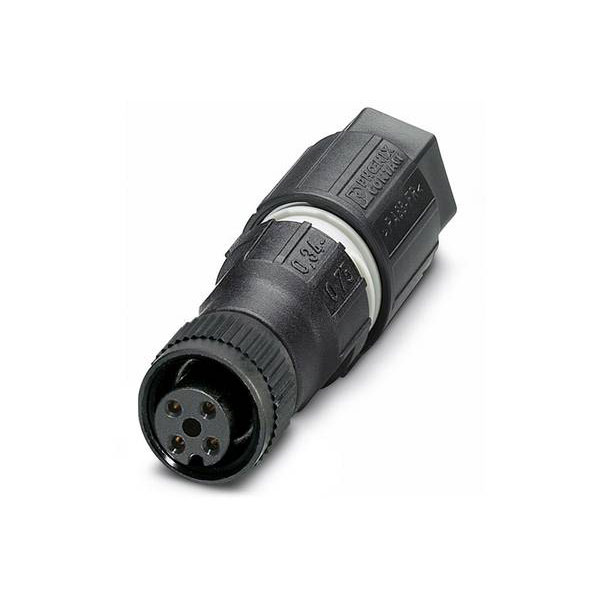

Phoenix Contact 1641756 M12 Sensor/Actuator Connector 4-Pos Socket A-Coded

The Phoenix Contact sensor/actuator plug-in connector SACC-M12FS-4QO-0,75 1641756 is a robust, high-quality connector designed for reliable signal transmission. It features a compact M12 design, ideal for industrial automation applications and harsh environments. Typically used for connecting sensors and actuators, it ensures secure and efficient electrical connections in various automation systems.

Connector 1	M12
Connector 2	Customisable
Colour	Multicolour
Type	Sensor connector
Ambient temperature	-25 - 80°C
Coating housing	Other
Coding	A
Conductor Cross Section	0.75mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.34 - 0.75mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.34 - 0.75mm²
Connectable conductor cross section multi-wired	0.34 - 0.75mm²
Connectable conductor cross section solid-core	0.34 - 0.75mm²
Connection	Screw terminal
Contact Type	Other
Degree of protection (IP), mounted	IP67
Diameter	2.60mm
Diameter connector	18.4mm
For cable outer diameter	4 - 8mm
Housing Material	Plastic
Inflammability class of insulation material according to UL94	V0
Material of contact surface	Nickel
Material thread ring	Plastic
Min. number of insertion cycles	100
Misc Attribute	SACC-M12FS-4QO-0,75
Nominal Current	4A
Nominal Voltage	250V
Number of control contacts	4
Number of data contacts	0
Number of power contacts	0
Overvoltage category	III
Pollution degree	3
Rated current In	4A
Rated voltage	250V
Screened	false
Thread size M	N/A
Thread Type	M12
Type of electric connection	Insulation displacement connection
Type of housing	Straight
Type of locking	Other
Weight	0.01
With protective conductor	false
With status indication	false
