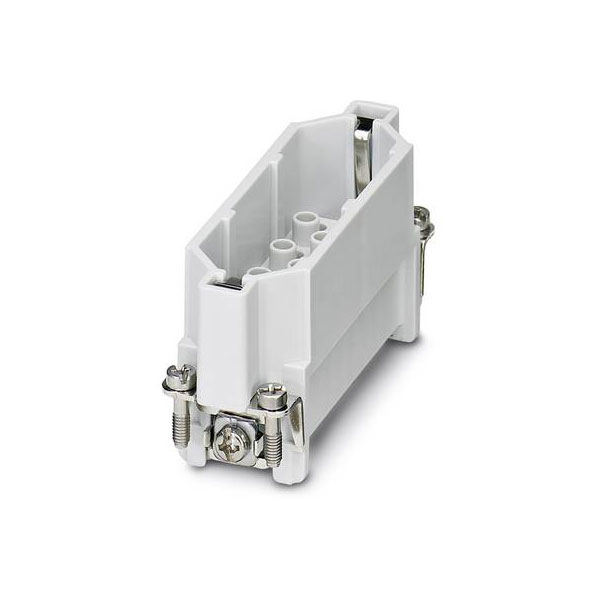

The Phoenix Contact 1584392 Pin Inset is an industry-grade connector designed for high voltage and heavy-duty applications. It features a robust crimp connection ideal for multicore cables in electrical engineering settings. Typical applications include industrial environments requiring reliable connectivity in demanding conditions.
| Type |
Pin inset |
| Contact Termination |
Crimp |
| Wire Gauge AWG |
14 |
| Gender |
Male |
| Ambient temperature |
125 - 125°C |
| Connectable conductor cross section fine-strand with cable end sleeve |
- - -mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.14 - 2.5mm² |
| Connectable conductor cross section multi-wired |
0.14 - 2.5mm² |
| Connectable conductor cross section solid-core |
- - -mm² |
| Connection |
Crimp |
| Contact insert without contacts |
true |
| Contact Type |
Pin |
| Depth |
72mm |
| Diameter plug-in contact |
1.6mm |
| Height |
34.2mm |
| Inflammability class of insulation material according to UL94 |
V0 |
| Leading Contact (Pe) |
Yes |
| Material connector insert |
Thermoplastic |
| Material contact |
Other copper alloys |
| Material of contact insert |
Thermoplastic |
| Material of contact surface |
Other |
| Min. number of insertion cycles |
500 |
| Number of control contacts |
0 |
| Number of pins |
108 |
| Number of Poles |
25 |
| Number of power contacts |
25 |
| Number of Ways |
108 + PE |
| Operating Temperature |
-40 - 125°C |
| Overvoltage category |
III |
| Pollution degree |
3 |
| Rated current In |
10A |
| Rated Surge Voltage |
4kV |
| Rated voltage |
250V |
| Series |
HC-D |
| Type of electric connection |
Crimp connection |
| Width |
22.5mm |
| Wire Gauge (mm²) |
0.14mm² |
| With protective conductor |
true |
| With wire protection |
false |
