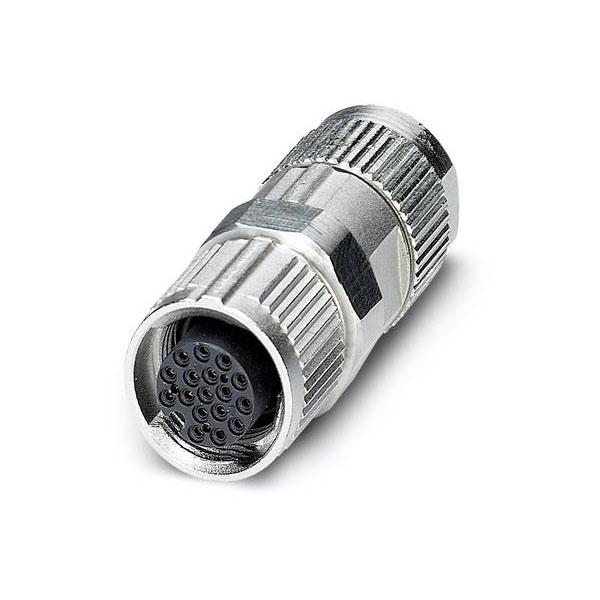

The plug-in connector SACC-FS-17PCON SCO 1559644 by Phoenix Contact is a robust sensor/actuator connector known for its reliability in industrial environments. It is designed to facilitate secure and efficient electrical connections in machinery and automation systems. Commonly used in sensor networks and actuation tasks, this connector ensures stable performance in challenging conditions.
| Connector 1 |
M12 |
| Connector 2 |
Customisable |
| Colour |
Multicolour |
| Type |
Sensor connector |
| Ambient temperature |
-25 - 85°C |
| Coating housing |
Other |
| Coding |
A |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.14 - 0.14mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.14 - 0.14mm² |
| Connectable conductor cross section multi-wired |
0.14 - 0.14mm² |
| Connectable conductor cross section solid-core |
0.14 - 0.14mm² |
| Connection |
Quick-connect |
| Contact Type |
Other |
| Cross-section (sensor/actuator wiring) |
0.14mm² |
| Degree of protection (IP), mounted |
IP67 |
| Diameter |
1.05mm |
| Diameter connector |
15.885318mm |
| For cable outer diameter |
- - -mm |
| Housing Material |
Other |
| Inflammability class of insulation material according to UL94 |
V0 |
| IP Rating |
IP67 |
| Material of contact surface |
Nickel |
| Material thread ring |
Other |
| Maximum Temperature |
+85°C |
| Min. number of insertion cycles |
100 |
| Min. temperature |
-25°C |
| Misc Attribute |
SACC-FS-17PCON SCO |
| Nominal Current |
1.5A |
| Number of control contacts |
17 |
| Number of data contacts |
0 |
| Number of power contacts |
0 |
| Overvoltage category |
II |
| Pollution degree |
3 |
| Rated current In |
1.5A |
| Rated voltage |
30V |
| Screened |
false |
| Thread size M |
N/A |
| Type of electric connection |
Insulation piercing connection |
| Type of housing |
Straight |
| Type of locking |
Other |
| With protective conductor |
false |
| With status indication |
false |
