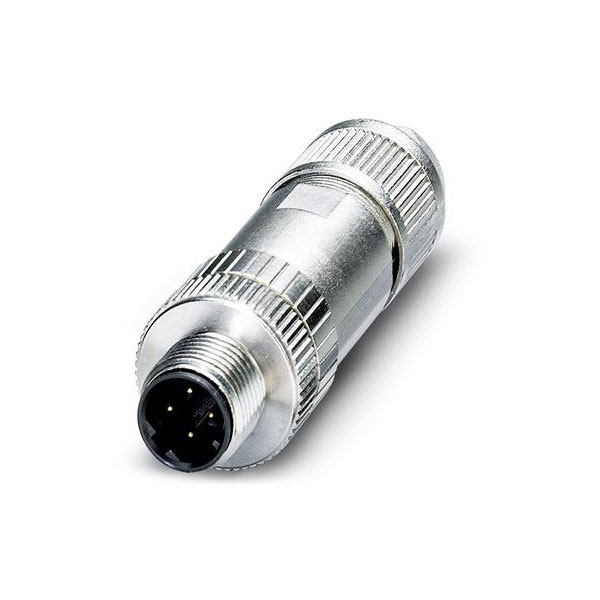

Phoenix Contact 1554513 Bus System Connector M12 D-Coded 4-Position Shielded

Phoenix Contact manufactures the SACC-M12MSD-4Q SH PN 1554513, a bus system plug-in connector ideal for sensor and actuator data cables. This connector provides reliable and secure data transmission in industrial automation systems. Its robust design ensures durability and efficiency in demanding environments.

Connector 1	M12
Connector 2	Customisable
Colour	Multicolour
Type	Bus connector
Ambient temperature	-40 - 85°C
Coating housing	Other
Coding	D
Connectable conductor cross section fine-strand with cable end sleeve	- - -mm²
Connectable conductor cross section fine-strand without cable end sleeve	- - -mm²
Connectable conductor cross section multi-wired	- - -mm²
Connectable conductor cross section solid-core	- - -mm²
Connection	Cut & Clip
Contact Type	Other
Degree of protection (IP), mounted	IP67
Diameter	1.60mm
Diameter connector	N/Amm
For cable outer diameter	- - -mm
Housing Material	Other
Inflammability class of insulation material according to UL94	V0
Material of contact surface	Nickel
Material thread ring	Other
Max. temperature	+85°C
Min. number of insertion cycles	100
Min. temperature	-40°C
Misc Attribute	SACC-M12MSD-4Q SH PN
Nominal Current	1.75A
Nominal Voltage	60V DC
Number of control contacts	4
Number of data contacts	0
Number of power contacts	0
Overvoltage category	II
Pollution degree	3
Rated current In	1.75A
Rated voltage	48V
Screened	true
Thread size M	N/A
Thread Type	M12
Type of electric connection	Insulation displacement connection
Type of housing	Straight
Type of locking	Other
With protective conductor	false
With status indication	false
