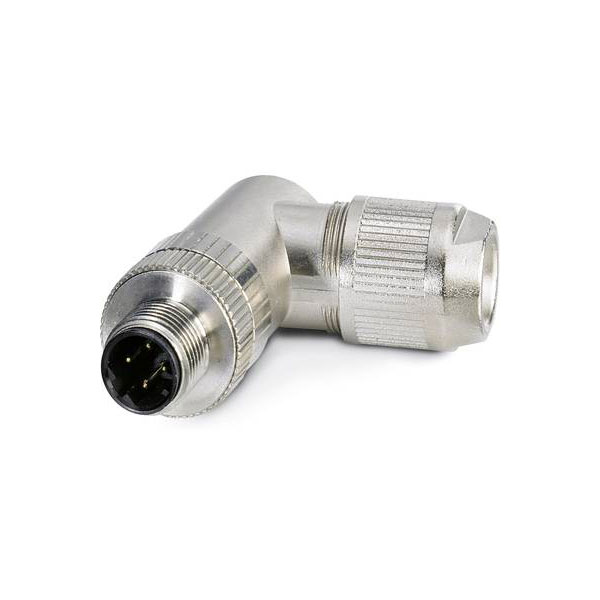

Phoenix Contact 1553624 SACC Plug 4-Pos Shielded Ethernet M12 D-coded

Phoenix Contact's SACC-M12MRD-4Q SH 1553624 is a versatile bus system plug-in connector designed for seamless integration with sensor/actuator data cables. It is uniquely identified by codes such as 04046356158794 and 801-6479, making it easily recognisable. Ideal for industrial applications, this component ensures reliable data transmission in automation environments.

Connector 1	M12
Connector 2	Customisable
Colour	Multicolour
Type	Bus connector
Ambient temperature	-40 - 85°C
Coating housing	Other
Coding	D
Conductor Cross Section	0.34mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.14 - 0.34mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.14 - 0.34mm²
Connectable conductor cross section multi-wired	0.14 - 0.34mm²
Connectable conductor cross section solid-core	0.14 - 0.34mm²
Connection	Cut & Clip
Contact Type	Other
Degree of protection (IP), mounted	IP67
Diameter	1.60mm
Diameter connector	N/Amm
For cable outer diameter	- - -mm
Housing Material	Other
Inflammability class of insulation material according to UL94	V0
Material of contact surface	Nickel
Material thread ring	Other
Max. temperature	+85°C
Min. number of insertion cycles	100
Min. temperature	-40°C
Misc Attribute	SACC-M12MRD-4Q SH
Nominal Current	1.75A
Number of control contacts	4
Number of data contacts	0
Number of power contacts	0
Overvoltage category	II
Pollution degree	3
Rated current In	1.75A
Rated voltage	48V
Screened	true
Thread size M	N/A
Thread Type	M12
Type of electric connection	Insulation displacement connection
Type of housing	Angled
Type of locking	Other
With protective conductor	false
With status indication	false
