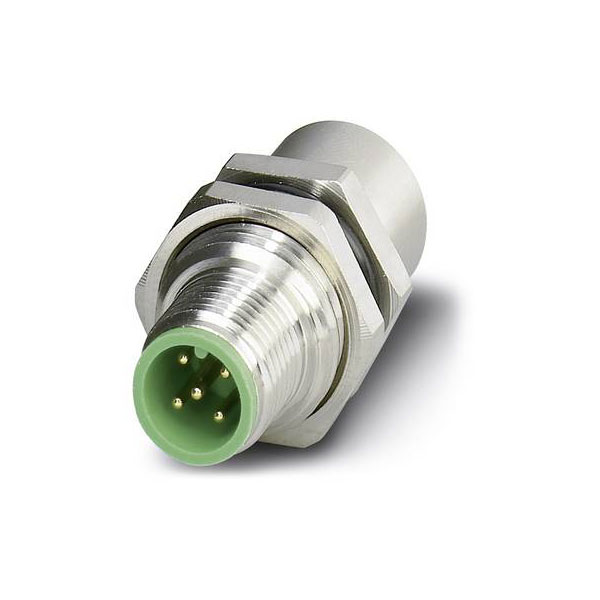

Phoenix Contact 1551671 SACC Panel Feed-through M12 5-pos Shielded

The Phoenix Contact panel feed-through SACC-5P-DSI-M12MS/FS-M16, model number 1551671, is a sensor/actuator built-in connector renowned for its durability and ease of installation. Designed for seamless integration in industrial environments, it supports secure and reliable data and power transmission. Typical applications include automation systems and other demanding industrial settings where robust connectivity solutions are crucial.

Connector 1	M12
Connector 2	M12
Colour	Multicolour
Type	Sensor connector
Ambient temperature	85 - 85°C
Coating housing	Nickel-plated
Coding	A
Connectable conductor cross section	- - -mm²
Degree of protection (IP), mounted	IP65
Housing Material	Brass
Inflammability class of insulation material according to UL94	HB
IP Rating	IP67
Material of contact surface	Other
Min. number of insertion cycles	100
Misc Attribute	SACC-5P-DSI-M12MS/FS-M16
Mounting method	N/A
Nominal Current	4A
Nominal Voltage	60V
Number of control contacts	5
Number of Poles	5
Operating Temperature	-25 - 85°C
Pollution degree	N/A
Rated current In	4A
Rated voltage	N/AV
Screw-in thread	N/A
Thread Type	M12
Type of plug-in contact, outer side	N/A
With PE-connection	N/A
With shield connection	false
With thread	true
