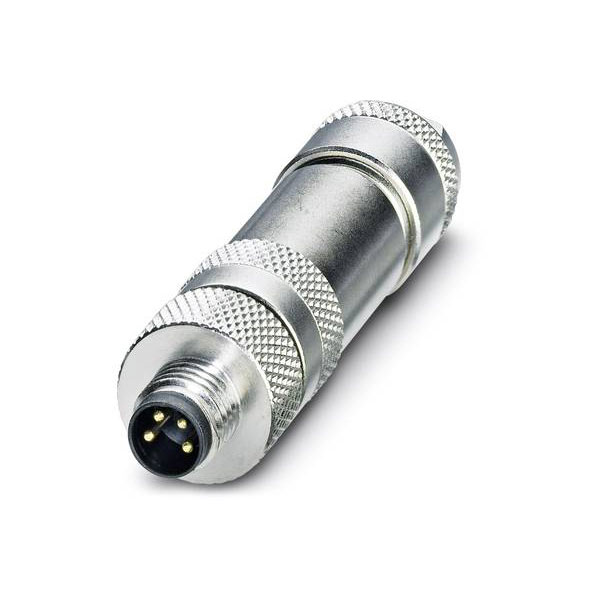

Phoenix Contact 1542897 SACC Plug-in Connector 4-Pos Nickel-Brass M8

Phoenix Contact's plug-in connector, model SACC-M 8MS-4CON-M-0,34-SH 1542897, is a sensor/actuator connector designed for reliable electrical connections. This connector features a robust construction suitable for industrial environments. It is typically used in applications requiring secure and efficient sensor or actuator integration.

Connector 1	M8
Connector 2	Customisable
Colour	Multicolour
Type	Sensor connector
Ambient temperature	-40 - 85°C
Coating housing	Other
Coding	A
Conductor Cross Section	0.50mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.14 - 0.5mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.14 - 0.5mm²
Connectable conductor cross section multi-wired	0.14 - 0.5mm²
Connectable conductor cross section solid-core	0.14 - 0.5mm²
Connection	Screw terminal
Contact Type	Other
Degree of protection (IP), mounted	IP67
Diameter connector	N/Amm
For cable outer diameter	- - -mm
Housing Material	Brass
Inflammability class of insulation material according to UL94	HB
Material of contact surface	Gold
Material thread ring	Other
Min. number of insertion cycles	100
Misc Attribute	SACC-M 8MS-4CON-M-0,34-SH
Nominal Current	4A
Number of control contacts	4
Number of data contacts	0
Number of power contacts	0
Overvoltage category	III
Pollution degree	3
Rated current In	4A
Rated voltage	30V
Screened	true
Thread size M	N/A
Thread Type	M8
Type of electric connection	Screw connection
Type of housing	Straight
Type of locking	Other
With protective conductor	false
With status indication	false
