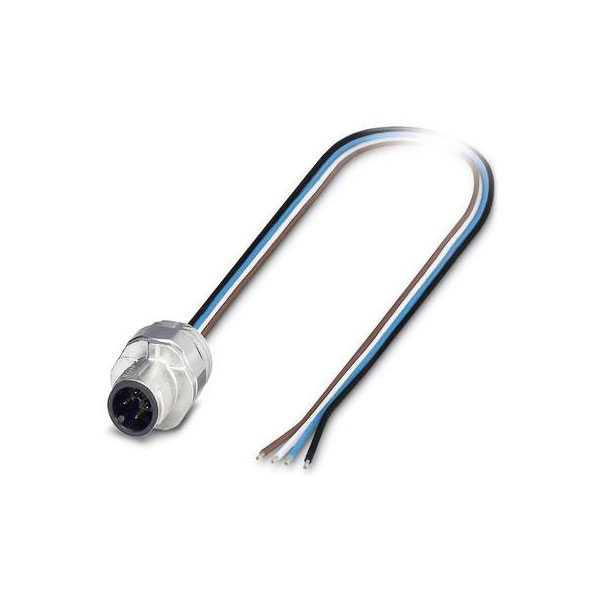

Phoenix Contact 1530595 Sensor/Actuator Plug 4-pos M5 0.5m TPE Wire

Phoenix Contact manufactures the flush-type connector SACC-E-M5MS-4CON-M5/0,5 1530595. This connector is designed for sensor and actuator applications and features a robust build suitable for embedded use. It is ideal for facilitating secure and reliable electrical connections in industrial settings.

Connector 1	Cable, open end
Connector 2	M5 plug, built-in
Colour	Multicolour
Length	0.5m
Type	Sensor connector
Ambient temperature	80 - 80°C
Cable Length	0.5mm
Coating housing	N/A
Coding	A
Conductor Cross Section	0.14mm²
Connection	Open end cable
Core cross section	0.14mm²
Degree of protection (IP), mounted	N/A
Housing Material	Other
Inflammability class of insulation material according to UL94	HB
IP Rating	IP67
Material	TPE
Material core insulation	Other
Material of contact surface	Other
Min. number of insertion cycles	N/A
Misc Attribute	SACC-E-M5MS-4CON-M5/0,5
Mounting method	N/A
Nominal Current	1A
Nominal Voltage	60V
Number of control contacts	4
Number of Poles	N/A
Number of power contacts	N/A
Operating Temperature	-25 - 80°C
Pollution degree	N/A
Rated current In	1A
Rated voltage	48V
Screw-in thread	N/A
Thread Type	M5
Type of plug-in contact, inner side	N/A
Type of plug-in contact, outer side	Male (plug)
With PE-connection	false
With shield connection	false
