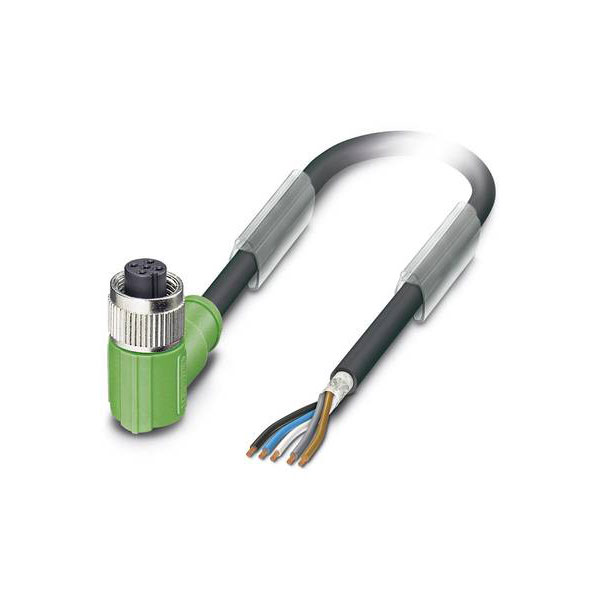

Phoenix Contact 1527757 Sensor/Actuator Cable 5P PVC Black 10m M12 A-coded

The SAC-5P-10,0-PVC/M12FR SH BK 1527757 from Phoenix Contact is a shielded sensor/actuator cable featuring a robust M12 socket and free cable end, ideal for reliable industrial connections. This PLUSCON industrial plug is designed for use in sensor and actuator cabling, supporting high-performance data transmission. Suitable for automated environments, it ensures secure and efficient signal communication in harsh conditions.

Connector 1	Cable, open end
Connector 2	M12
Colour	Black
Length	10m
Type	Sensor connector
Cable Length	10m
Cable Type	Multi-core
Coding	A
Colour cable sheath	Other
Connection	Open end cable
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.34mm²
Degree of protection (IP)	IP65
Diameter	1.35mm
Halogen free	true
Material	PUR
Material contact body	CuSn
Material of cable sheath	Polyvinyl chloride (PVC)
Material of contact surface	Other
Misc Attribute	SAC-5P-10,0-PVC/M12FR SH BK
Nominal Current	4A
Number of Poles	5
Permitted cable outer temperature after assembling without vibration	-25 - 80°C
Permitted cable outer temperature during assembling/handling	-5 - 80°C
Positioning cable feed, box-sided	Straight
Positioning cable feed, field-sided	Other
Rated current In	4A
Rated voltage	48V
Screened	true
Thread Type	M12
Type of electrical connection, box-sided	M12
Type of electrical connection, field-sided	Other
Type of plug-in contact, box-sided	Female (bus)
Type of plug-in contact, field sided	N/A
Vulcanized	false
With LED indication	false
