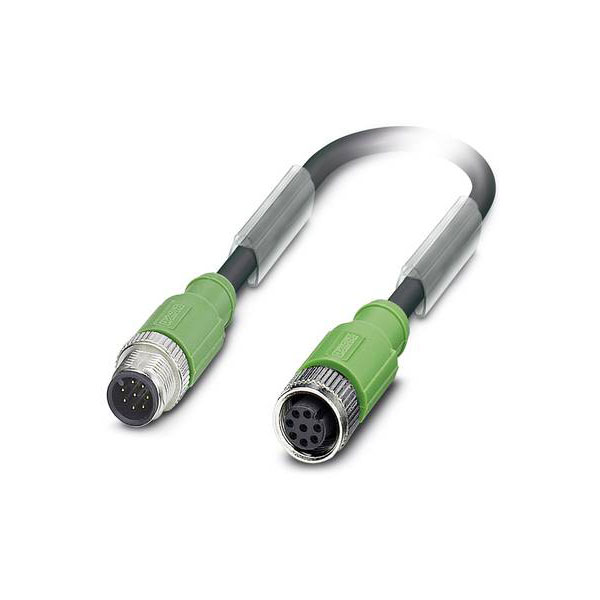

Phoenix Contact 1522998 Sensor/Actuator Cable 8-position 3m Shielded Black

The Sensor/Actuator cable SAC-8P-M12MS/3,0-PUR/M12FS SH 1522998 by Phoenix Contact features an 8-pin M12 connector with a 3-metre PUR cable. It is designed for robust connections in industrial automation and sensor applications. This pre-fabricated connector is ideal for ensuring reliable signal transmission in harsh environments.

Connector 1	M12
Connector 2	M12
Colour	Black
Length	3m
Type	Sensor connector
Cable Length	3m
Cable Type	Multi-core
Coding	A
Colour cable sheath	Other
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.25mm²
Degree of protection (IP)	IP65
Diameter	1.17mm
Halogen free	true
IP Rating	IP65
Material	PUR
Material contact body	CuZn
Material of cable sheath	Other
Material of contact surface	Other
Misc Attribute	SAC-8P-M12MS/ 3,0-PUR/M12FS SH
Nominal Current	2A
Number of Poles	8
Permitted cable outer temperature after assembling without vibration	-40 - 80°C
Permitted cable outer temperature during assembling/handling	-25 - 80°C
Positioning cable feed, box-sided	Straight
Positioning cable feed, field-sided	Straight
Rated current In	2A
Rated voltage	30V
Screened	true
Thread Type	M12
Type of electrical connection, box-sided	M12
Type of electrical connection, field-sided	M12
Type of plug-in contact, box-sided	Female (bus)
Type of plug-in contact, field sided	Male (plug)
Vulcanized	false
With LED indication	false
