Phoenix Contact 1522707 Sensor/Actuator Cable M12A-Coded3mH-Free

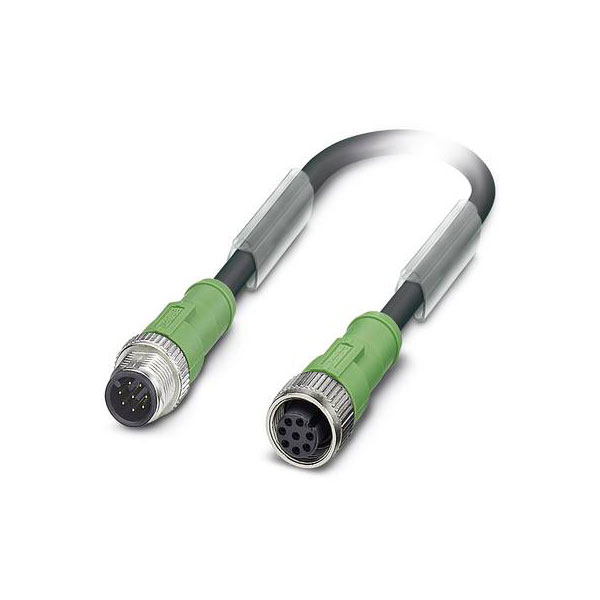

Phoenix Contact manufactures the Sensor/Actuator cable SAC-8P-M12MS/3,0-PUR/M12FS 1522707 with an 8-pin M12 male straight to M12 female straight connector design, providing a robust and flexible connection. The cable features a durable polyurethane jacket for demanding industrial environments. It is typically used in automation systems for reliable sensor and actuator connections.

Connector 1	M12
Connector 2	M12
Colour	Black
Length	3m
Type	Sensor connector
Cable Length	3m
Cable Type	Multi-core
Coding	A
Colour cable sheath	Other
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.25mm²
Degree of protection (IP)	IP65
Diameter	1.17mm
Halogen free	true
IP Rating	IP65
Material	PUR
Material contact body	CuZn
Material of cable sheath	Other
Material of contact surface	Other
Misc Attribute	SAC-8P-M12MS/ 3,0-PUR/M12FS
Nominal Current	2A
Number of Poles	8
Permitted cable outer temperature after assembling without vibration	-40 - 80°C
Permitted cable outer temperature during assembling/handling	-25 - 80°C
Positioning cable feed, box-sided	Straight
Positioning cable feed, field-sided	Straight
Rated current In	2A
Rated voltage	30V
Screened	false
Thread Type	M12
Type of electrical connection, box-sided	M12
Type of electrical connection, field-sided	M12
Type of plug-in contact, box-sided	Female (bus)
Type of plug-in contact, field sided	Male (plug)
Vulcanized	false
With LED indication	false
