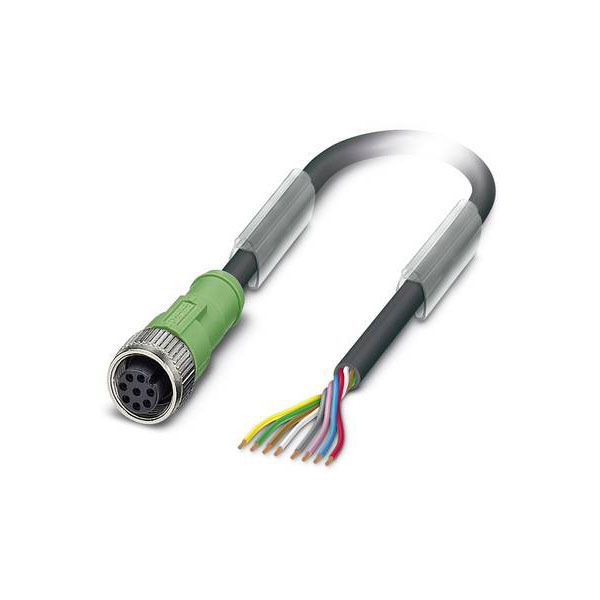

Phoenix Contact 1522590 Sensor/Actuator Cable 8-POS PUR Black 1.5m M12 A-coded

Phoenix Contact manufactures the Sensor/Actuator cable SAC-8P-1,5-PUR/M12FS 1522590, featuring an 8-pin configuration and a durable PUR jacket for industrial environments. This pre-fabricated sensor/actuator connector is typically used in automation and machinery for reliable signal transmission. The cable is designed for easy integration with M12 connector systems, ensuring compatibility and performance in demanding applications.

Connector 1	Cable, open end
Connector 2	M12
Colour	Black
Length	1.5m
Type	Sensor connector
Cable Length	1.5m
Cable Type	Multi-core
Coding	A
Colour cable sheath	Other
Connection	Open end cable
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.25mm²
Degree of protection (IP)	IP65
Diameter	1.17mm
Halogen free	true
Material	PUR
Material contact body	CuZn
Material of cable sheath	Other
Material of contact surface	Other
Misc Attribute	SAC-8P- 1,5-PUR/M12FS
Nominal Current	2A
Number of Poles	8
Permitted cable outer temperature after assembling without vibration	-40 - 80°C
Permitted cable outer temperature during assembling/handling	-25 - 80°C
Positioning cable feed, box-sided	Straight
Positioning cable feed, field-sided	Other
Rated current In	2A
Rated voltage	30V
Screened	false
Thread Type	M12
Type of electrical connection, box-sided	M12
Type of electrical connection, field-sided	Other
Type of plug-in contact, box-sided	Female (bus)
Type of plug-in contact, field sided	N/A
Vulcanized	false
With LED indication	false
