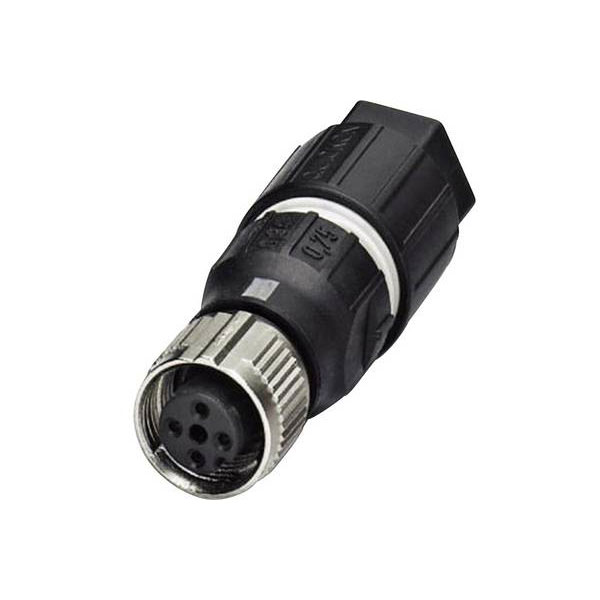

The Phoenix Contact 1521601 is an M12 socket connector designed for sensor and actuator applications, featuring a straight configuration with 4 pins. This reliable connector is suitable for industrial environments, enhancing connectivity and ensuring precise data transmission. It is commonly used in automation systems and machinery for robust and secure electrical connections.
| Connector 1 |
M12 |
| Connector 2 |
Customisable |
| Type |
Sensor connector |
| Ambient temperature |
-25 - 80°C |
| Coating housing |
Other |
| Coding |
A |
| Conductor Cross Section |
0.75mm² |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.34 - 0.75mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.34 - 0.75mm² |
| Connectable conductor cross section multi-wired |
0.34 - 0.75mm² |
| Connectable conductor cross section solid-core |
0.34 - 0.75mm² |
| Connection |
Cut & Clip |
| Contact Type |
Other |
| Degree of protection (IP), mounted |
IP67 |
| Diameter |
2.60mm |
| Diameter connector |
18.4mm |
| For cable outer diameter |
4 - 8mm |
| Housing Material |
Plastic |
| Inflammability class of insulation material according to UL94 |
V0 |
| IP Rating |
IP65, IP67 |
| Material of contact surface |
Nickel |
| Material thread ring |
Other |
| Min. number of insertion cycles |
100 |
| Misc Attribute |
SACC-FS-4QO-0,75-M SCO |
| Nominal Current |
4A |
| Nominal Voltage |
250V |
| Number of control contacts |
4 |
| Number of data contacts |
0 |
| Number of power contacts |
0 |
| Overvoltage category |
III |
| Pollution degree |
3 |
| Rated current In |
4A |
| Rated voltage |
250V |
| Screened |
false |
| Thread size M |
N/A |
| Thread Type |
M12 |
| Type of electric connection |
Insulation displacement connection |
| Type of housing |
Straight |
| Type of locking |
Other |
| With protective conductor |
false |
| With status indication |
false |
