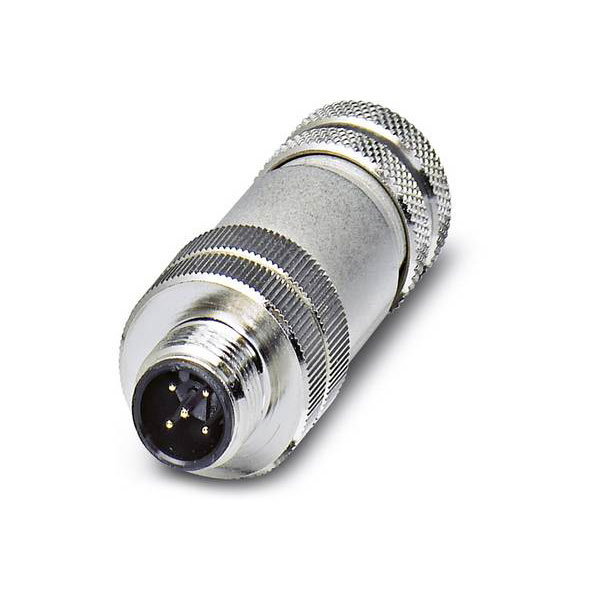

Phoenix Contact 1508352 Bus Connector M12 5-pos Shielded Gold-Plated

The Phoenix Contact bus system plug-in connector, model SACC-M12MS-5CON-PG 9 SH AU 1508352, is designed for robust sensor and actuator data connections. This connector features a gold-plated contact surface for enhanced conductivity and corrosion resistance. It is typically used in industrial automation and control systems.

Connector 1	M12
Connector 2	Customisable
Colour	Multicolour
Type	Bus connector
Ambient temperature	-40 - 85°C
Coating housing	Other
Coding	A
Conductor Cross Section	0.75mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 0.75mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.25 - 0.75mm²
Connectable conductor cross section multi-wired	0.25 - 0.75mm²
Connectable conductor cross section solid-core	0.25 - 0.75mm²
Connection	Screw terminal
Contact Type	Other
Degree of protection (IP), mounted	IP67
Diameter connector	20mm
For cable outer diameter	- - -mm
Housing Material	Other
Inflammability class of insulation material according to UL94	HB
Material of contact surface	Gold
Material thread ring	Other
Max. temperature	+85°C
Min. number of insertion cycles	100
Min. temperature	-40°C
Misc Attribute	SACC-M12MS-5CON-PG 9 SH AU
Nominal Current	4A
Number of control contacts	5
Number of data contacts	0
Number of power contacts	0
Overvoltage category	II
Pollution degree	3
Rated current In	4A
Rated voltage	48V
Screened	true
Thread size M	N/A
Thread Type	M12
Type of electric connection	Screw connection
Type of housing	Straight
Type of locking	Other
With protective conductor	false
With status indication	false
