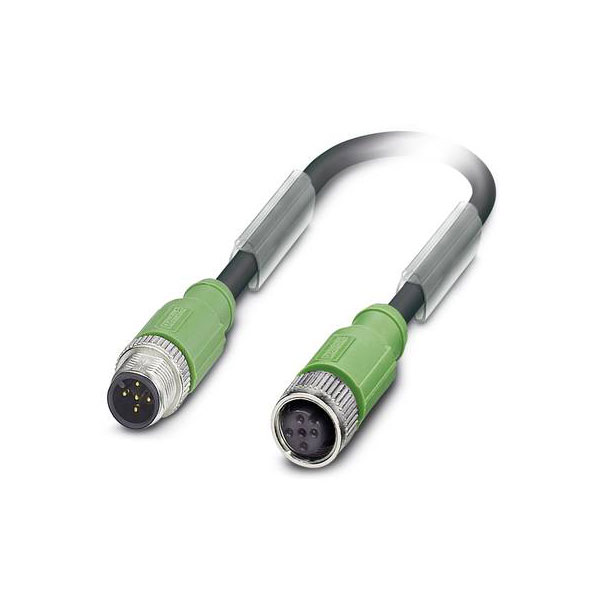

Phoenix Contact 1500910 Sensor/Actuator Cable Shielded 5-position 3m Black

Phoenix Contact manufactures the Sensor/Actuator cable SAC-5P-M12MS/3,0-PUR/M12FS SH, designed for reliable sensor and actuator connections. This pre-fabricated connector features a robust PUR jacket and M12 connectors for secure and durable use. It is typically used in industrial automation applications for efficient signal transmission.

Connector 1	M12
Connector 2	M12
Colour	Black
Length	3m
Type	Sensor connector
Cable Length	3m
Cable Type	Multi-core
Coding	A
Colour cable sheath	Other
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.34mm²
Degree of protection (IP)	IP65
Diameter	1.27mm
Halogen free	true
IP Rating	IP65
Material	PUR
Material contact body	CuSn
Material of cable sheath	Other
Material of contact surface	Other
Misc Attribute	SAC-5P-M12MS/ 3,0-PUR/M12FS SH
Nominal Current	4A
Number of Poles	5
Permitted cable outer temperature after assembling without vibration	-40 - 80°C
Permitted cable outer temperature during assembling/handling	-25 - 80°C
Positioning cable feed, box-sided	Straight
Positioning cable feed, field-sided	Straight
Rated current In	4A
Rated voltage	48V
Screened	true
Thread Type	M12
Type of electrical connection, box-sided	M12
Type of electrical connection, field-sided	M12
Type of plug-in contact, box-sided	Female (bus)
Type of plug-in contact, field sided	Male (plug)
Vulcanized	false
With LED indication	false
