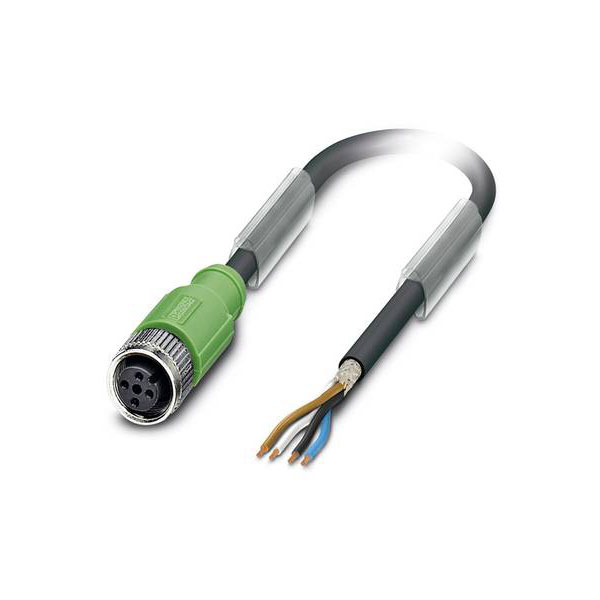

Phoenix Contact 1500716 Sensor/Actuator Cable 10m Shielded PUR M12 A-coded

The Sensor/Actuator cable SAC-4P-10,0-PUR/M12FS SH 1500716 by Phoenix Contact features a robust PUR sheath and an M12 female connector, making it suitable for harsh environments. It is ideal for connecting sensors and actuators in industrial automation and machinery applications. The cable ensures reliable signal transmission and can handle challenging conditions with ease.

Connector 1	Cable, open end
Connector 2	M12
Colour	Black
Length	10m
Type	Sensor connector
Cable Length	10m
Cable Type	Multi-core
Coding	A
Colour cable sheath	Other
Connection	Open end cable
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.34mm²
Degree of protection (IP)	IP65
Diameter	1.27mm
Halogen free	true
Material	PUR
Material contact body	CuSn
Material of cable sheath	Other
Material of contact surface	Other
Misc Attribute	SAC-4P-10,0-PUR/M12FS SH
Nominal Current	4A
Number of Poles	4
Permitted cable outer temperature after assembling without vibration	-40 - 80°C
Permitted cable outer temperature during assembling/handling	-25 - 80°C
Positioning cable feed, box-sided	Straight
Positioning cable feed, field-sided	Other
Rated current In	4A
Rated voltage	48V
Screened	true
Thread Type	M12
Type of electrical connection, box-sided	M12
Type of electrical connection, field-sided	Other
Type of plug-in contact, box-sided	Female (bus)
Type of plug-in contact, field sided	N/A
Vulcanized	false
With LED indication	false
