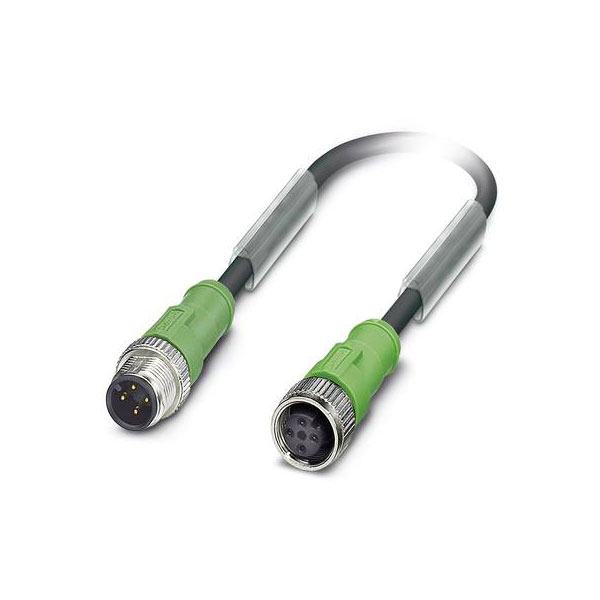

Phoenix Contact 1500402 SAC Sensor/Actuator Cable 4P 10m A-Coded M12 PUR

Phoenix Contact manufactures the SAC-4P-M12MS/10,0-PUR/M12FS 1500402, a 4-pin sensor/actuator cable with a straight M12 plug and socket, designed for industrial applications. This cable, part of the PLUSCON sensor actuator cabling range, is pre-fabricated for quick and secure connections. It is typically used in automation and industrial environments for reliable signal transmission.

Connector 1	M12
Connector 2	M12
Colour	Black
Length	10m
Type	Sensor connector
Cable Length	10m
Cable Type	Multi-core
Coding	A
Colour cable sheath	Other
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.34mm²
Degree of protection (IP)	IP65
Diameter	1.27mm
Halogen free	true
Industrial packaging	Yes
Material	PUR
Material contact body	CuSn
Material of cable sheath	Other
Material of contact surface	Other
Misc Attribute	SAC-4P-M12MS/10,0-PUR/M12FS
Nominal Current	4A
Number of Poles	4
Permitted cable outer temperature after assembling without vibration	-40 - 80°C
Permitted cable outer temperature during assembling/handling	-25 - 80°C
Positioning cable feed, box-sided	Straight
Positioning cable feed, field-sided	Straight
Rated current In	4A
Rated voltage	250V
Screened	false
Thread Type	M12
Type of electrical connection, box-sided	M12
Type of electrical connection, field-sided	M12
Type of plug-in contact, box-sided	Female (bus)
Type of plug-in contact, field sided	Male (plug)
Vulcanized	false
With LED indication	false
