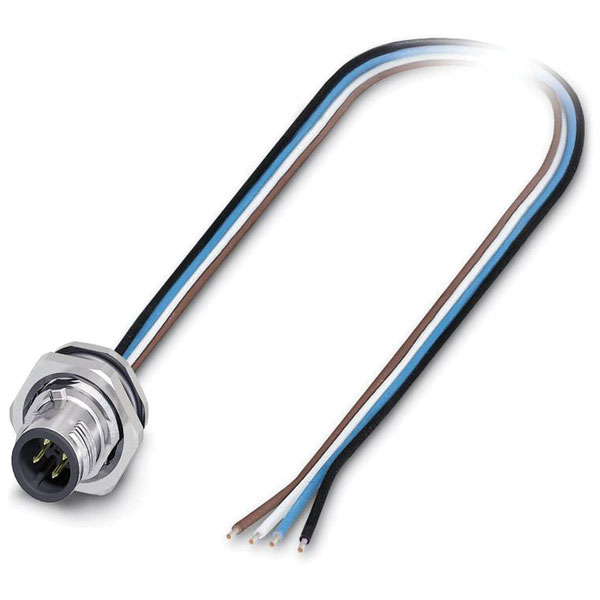

Phoenix Contact 1500363 M8 Sensor/Actuator Receptacle M12 Flange

Phoenix Contact manufactures the SACC-E-M 8FS-4CON-M8/0.5, an M8 sensor/actuator receptacle connector. This component features a compact design suitable for integration into tight spaces in electronic equipment. Typical applications include industrial automation and control systems, where reliable sensor and actuator connections are essential.

Connector 1	Cable, open end
Connector 2	M12
Colour	Multicolour
Type	Sensor connector
Ambient temperature	85 - 85°C
Cable Length	0.5mm
Coating housing	N/A
Conductor Cross Section	0.14mm²
Contamination level	3
Core cross section	0.25mm²
Cross-section (sensor/actuator wiring)	0.25mm²
Degree of protection (IP), mounted	N/A
Housing Material	Other
Inflammability class of insulation material according to UL94	HB
Material	TPE
Material core insulation	Other
Material of contact surface	Other
Max. temperature	+85°C
Min. number of insertion cycles	N/A
Min. temperature	-25°C
Misc Attribute 1	SACC-E-M 8FS-4CON-M8/0,5
Misc Attribute 2	M8-socket
Mounting	M8 front panel fitting
Mounting method	N/A
Nominal Current	3A
Nominal Voltage	30V
Number of control contacts	4
Number of Poles	N/A
Number of power contacts	N/A
Operating Temperature	-25 - 85°C
Pollution degree	N/A
Rated current In	4A
Rated voltage	48V
Screw-in thread	N/A
Seal type	Screw-on
Temperature Range	-25 - +85°C
Thread Type	M8
Type of plug-in contact, inner side	N/A
Type of plug-in contact, outer side	Female (bus)
With PE-connection	false
With shield connection	false
