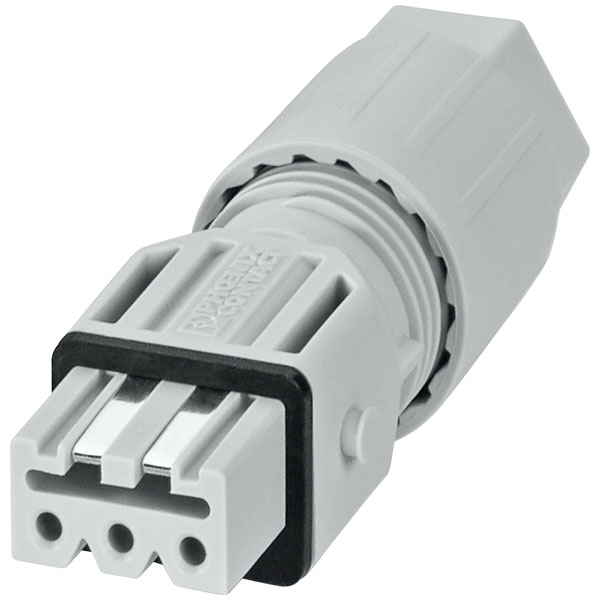

Phoenix Contact 1490380 Connector 4+PE pins 16 A quick assembly grey

Phoenix Contact manufactures the QPD STAK connector, featuring 4 pins plus a protective earth. This mains connector, with a grey colour and current ratings of 16 A and 10 A, is designed for reliable electrical connections. It is typically used in power distribution systems and industrial applications.

Type	Connector
Current Rating	N/A
Wire Gauge AWG	20 ... 16
Cable Diameter	7 - 13mm
Colour	Grey
Colour coding/contact insert	N/A
Connection cross section (fine-strand)	- - -mm²
Connection cross section (solid-core)	1.5 - 1.5mm²
Connection Type	N/A
Contact Material	N/A
Continuity resistance	N/AmOhm
Degree of protection (IP)	N/A
Fire Load	N/AkWh
Halogen free	N/A
Height	26mm
Housing Material	N/A
IP Rating	IP54, IK07
Leading Contact (Pe)	Yes
Length	67mm
Max. continuous temperature resistance contact part	N/A°C
Max. continuous temperature resistance strain relief	N/A°C
Mechanical coding	N/A
Misc Attribute	QPD STAK 3PE1,5 GY
Model	N/A
Number of connections per pole	N/A
Number of pins	4
Number of Poles	N/A
Number of Ways	4 + PE
Pole codification	N/A
Pollution degree	N/A
RAL-number coding/contact insert	N/A
Rated current	N/AA
Rated Surge Voltage	N/AkV
Rated voltage	N/AV
Surface coating contacts	N/A
Type of locking	N/A
Width	27.5mm
Wire Gauge (mm²)	7mm
With strain relief	N/A
