Phoenix Contact 1459647 QUICKON Bullet Connector Locknut 1 piece Fast Fit

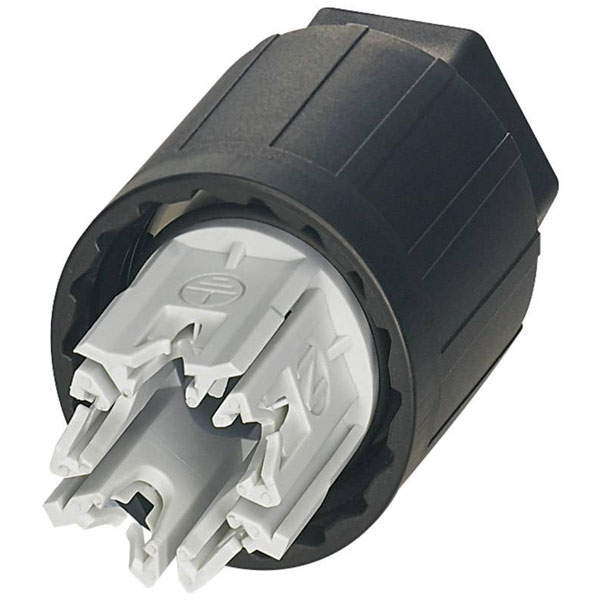

Image Representative of Range

Phoenix Contact 1459647 QUICKON Bullet Connector Locknut 1 piece Fast Fit

Phoenix Contact
Order Code:

12-6855

Brand: Phoenix Contact MPN: 1459647 EAN-13: 4046356698641
Qty Unit Price (Ex VAT)
2+ £3.17
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
63 available to back orderBack-order availability date - 10/01/2026

The Phoenix Contact 1459647 bullet connector locknut is part of the QUICKON series and is designed for secure connections. It is typically used in electrical installations requiring round connectors, ensuring reliable contact and ease of installation. Suitable for use in various industrial applications, it provides durability and optimal performance.
Bullet Diameter 34.6mm
Maximum Wire Size mm2 16mm
Cable Ø range 9 - 16 mm
Cable Ø up to 9mm
Connection IDC
Connection angle 180°
Contact Material PA
Length 42.2mm
Max. temperature +100°C
Min. temperature -40°C
Misc Attribute QPD N 4PE2,5 9-16 BK
Nominal Current 20A
Nominal current - rounded value 20A
Series QUICKON
Standards following UL 94 PA VO · UL-/ CSA
Type Bullet connector locknut
