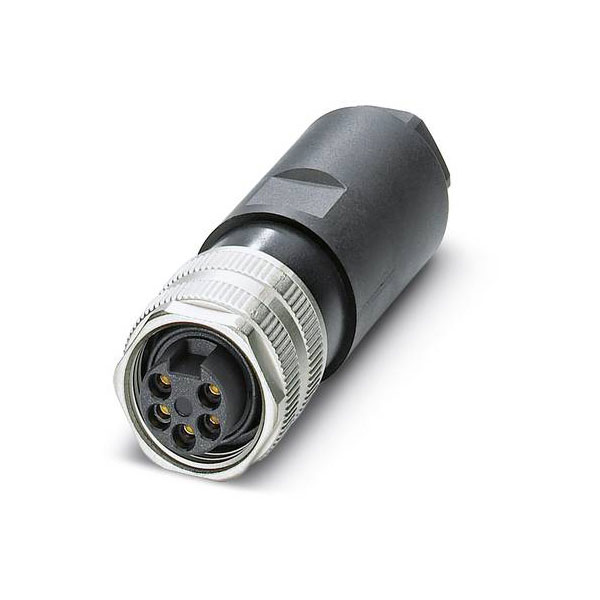

The SACC-MINFS-5CON-PG11/2,5, manufactured by Phoenix Contact, is a robust sensor/actuator plug-in connector known for its reliable performance. It features a 5-conductor interface with PG11/2,5 threading for secure and stable connections. This connector is typically used in industrial automation systems to connect sensors and actuators efficiently.
| Type |
Sensor connector |
| Number of Contacts |
5 |
| Gender |
Plug |
| Ambient temperature |
-25 - 85°C |
| Coating housing |
Other |
| Coding |
A |
| Conductor Cross Section |
2.50mm² |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.34 - 2.5mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.34 - 2.5mm² |
| Connectable conductor cross section multi-wired |
0.34 - 2.5mm² |
| Connectable conductor cross section solid-core |
0.34 - 2.5mm² |
| Connection |
Screw terminal |
| Connector 1 |
7/8" socket, straight |
| Connector 2 |
Customisable |
| Contact Type |
Other |
| Degree of protection (IP), mounted |
IP67 |
| Diameter connector |
27mm |
| For cable outer diameter |
- - -mm |
| Housing Material |
Other |
| Inflammability class of insulation material according to UL94 |
HB |
| IP Rating |
IP67 |
| Material of contact surface |
Gold |
| Material thread ring |
Other |
| Min. number of insertion cycles |
100 |
| Misc Attribute |
SACC-MINFS-5CON-PG11/2,5 |
| Nominal Current |
9A |
| Nominal Voltage |
300V |
| Number of control contacts |
5 |
| Number of data contacts |
0 |
| Number of power contacts |
0 |
| Overvoltage category |
III |
| Pollution degree |
3 |
| Rated current In |
9A |
| Rated voltage |
300V |
| Screened |
false |
| Thread size M |
N/A |
| Thread Type |
7/8" |
| Type of electric connection |
Screw connection |
| Type of housing |
Straight |
| Type of locking |
Other |
| With protective conductor |
false |
| With status indication |
false |
