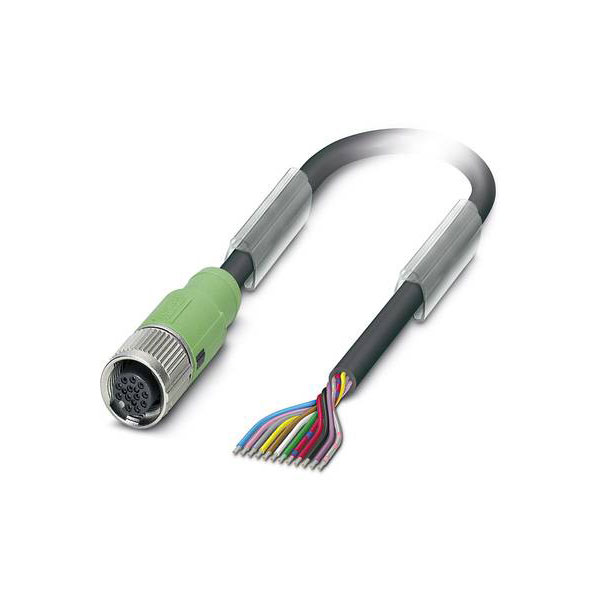

Phoenix Contact 1430637 SAC Cable 12P PUR Black M12 SPEEDCON 5m A-coded

The Phoenix Contact Sensor/Actuator cable SAC-12P-5,0-PUR/FS SCO 1430637 is a prefabricated connector designed for efficient sensor and actuator connections. It features a robust PUR jacket for durability in industrial environments. This cable is typically used in automation and control applications to ensure reliable signal transmission.

Connector 1	Cable, open end
Connector 2	M12
Colour	Black
Length	5m
Type	Sensor connector
Cable Length	5m
Cable Type	Multi-core
Coding	A
Colour cable sheath	Other
Connection	Open end cable
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.14mm²
Degree of protection (IP)	IP65
Diameter	1mm
Halogen free	true
IP Rating	IP65
Material	PUR
Material contact body	CuZn
Material of cable sheath	Other
Material of contact surface	Other
Misc Attribute	SAC-12P- 5,0-PUR/FS SCO
Nominal Current	1.5A
Number of Poles	12
Permitted cable outer temperature after assembling without vibration	-40 - 80°C
Permitted cable outer temperature during assembling/handling	-5 - 80°C
Positioning cable feed, box-sided	Straight
Positioning cable feed, field-sided	Other
Rated current In	1.5A
Rated voltage	30V
Screened	false
Thread Type	M12
Type of electrical connection, box-sided	M12
Type of electrical connection, field-sided	Other
Type of plug-in contact, box-sided	Female (bus)
Type of plug-in contact, field sided	N/A
Vulcanized	false
With LED indication	false
