Phoenix Contact 1419687 Sensor/Actuator Connector M12 SPEEDCON 8-Pos TPE

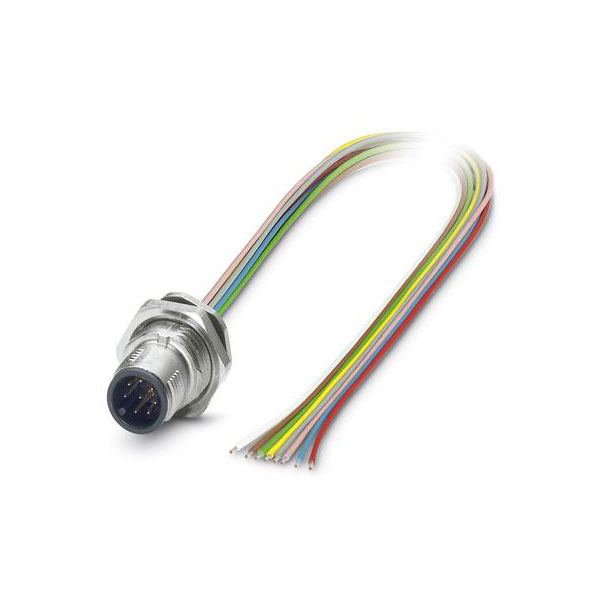

Phoenix Contact manufactures a flush-type connector called SACC-DSI-M12MS-8CON-M16/0,5 with part number 1419687. This sensor/actuator built-in connector features an M12 male socket containing eight contacts and an M16 thread. It is typically used in industrial automation applications for reliable electrical connections.

Connector 1	Cable, open end
Connector 2	M12
Colour	Multicolour
Length	0.5m
Type	Sensor connector
Ambient temperature	85 - 85°C
Cable Length	0.5mm
Coating housing	N/A
Coding	A
Conductor Cross Section	0.25mm²
Connection	Open end cable
Core cross section	0.25mm²
Degree of protection (IP), mounted	Other
Diameter	1.15mm
Housing Material	Other
Inflammability class of insulation material according to UL94	V0
Material	TPE
Material core insulation	Other
Material of contact surface	Other
Min. number of insertion cycles	100
Misc Attribute	SACC-DSI-M12MS-8CON-M16/0,5
Mounting method	N/A
Nominal Current	2A
Nominal Voltage	30V
Number of control contacts	8
Number of Poles	N/A
Number of power contacts	N/A
Operating Temperature	-25 - 85°C
Pollution degree	N/A
Rated current In	2A
Rated voltage	30V
Screw-in thread	N/A
Thread Type	M12
Type of plug-in contact, inner side	None
Type of plug-in contact, outer side	Male (plug)
With PE-connection	false
With shield connection	false
