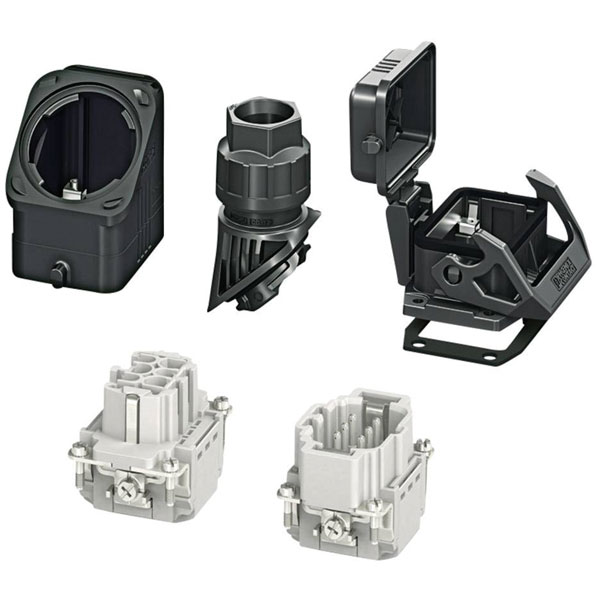

Phoenix Contact 1408794 HC-EVO Connector Set Push-In Connection 1 piece

The Phoenix Contact HC-EVO-B24PT-BWSC-HH-M32-PLRBK is an industry-grade heavy-duty connector set featuring a push-in connection. Designed for high voltage applications, it is ideal for use in industrial and electrical engineering environments. This connector set ensures robust and reliable connectivity in demanding conditions.

Type	Connector set
Number of Positions	24 + PE
Ambient temperature	- - -°C
Coating housing	N/A
Colour	Black
Connectable conductor cross section fine-strand with cable end sleeve	- - -mm²
Connectable conductor cross section fine-strand without cable end sleeve	- - -mm²
Connectable conductor cross section multi-wired	- - -mm²
Connectable conductor cross section solid-core	- - -mm²
Connection	Pull spring
Contact Type	N/A
Core cross section (max.)	2.5mm²
Core cross section (min.)	0.14mm²
Degree of protection (IP), mounted	N/A
Depth	130.871106mm
EMC-version	N/A
Height	173.827274mm
Housing Material	Other
Impact strength	N/A
Inflammability class of insulation material according to UL94	N/A
IP Rating	IP66
Leading Contact (Pe)	Yes
Material	Plastic
Material contact	N/A
Material insulation body	N/A
Material of contact surface	N/A
Mounting method	N/A
Number of conduit inlets	N/A
Number of plug-in contact rows	N/A
Number of Poles	24
Operating Temperature	-40 - 100°C
Overvoltage category	N/A
Pollution degree	3
Position cable feed	N/A
Rated current In	16A
Rated Surge Voltage	6kV
Rated voltage	500V
Series	HC-EVO-B24
Thread Size	M32
Type of electric connection	Insulation piercing connection
Type of locking	Single locking lever
Width	103.62697mm
With protective conductor	true
With sealing	N/A
