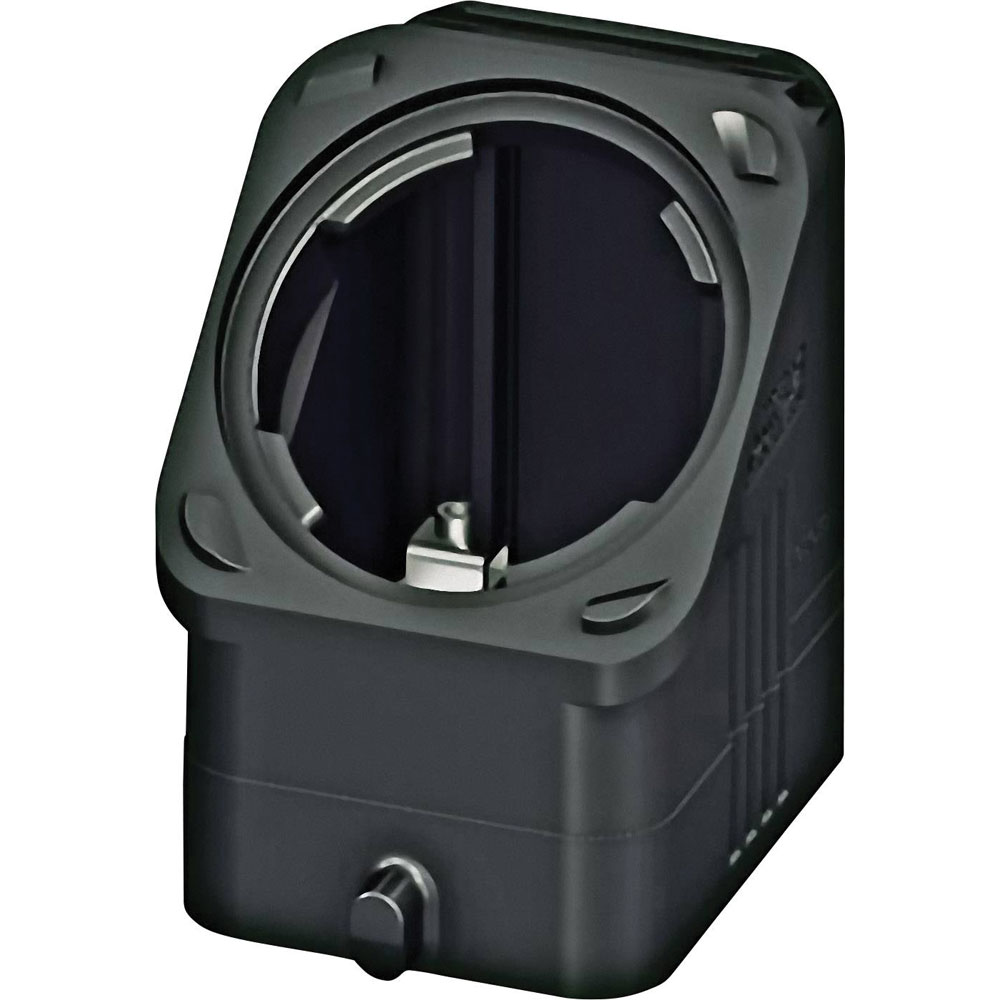

Phoenix Contact 1407642 HC-EVO Enclosure Bayonet Lock M20-M40 1 piece

Phoenix Contact's HC-EVO-B16-HHFS-PLBK Bush enclosure is a heavy-duty, industry-grade connector designed for high voltage and multicore applications. This robust enclosure is ideal for electrical engineering projects requiring durable and reliable connections. It is commonly used in industrial environments where secure and efficient connectivity is crucial.

Type	Bush enclosure
Coating housing	Other
Colour	Black
Corrosion resistant	N/A
Degree of protection (IP), mounted	IP66
Depth	93.5mm
EMC-version	false
Height	78mm
Housing Colour	Black
Housing Material	Other
Impact strength	IK08
Inflammability class of insulation material according to UL94	Other
IP Rating	IP66
Material	Polyamide
Material adaptor plate	N/A
Max. temperature	+125°C
Min. temperature	-40°C
Misc Attribute 1	Sleeve housing for long handle, cable inlet: above/lateral, Height: 76mm
Misc Attribute 2	HC-EVO-B16-HHFS-PLBK
Misc Attribute 3	B16
Mounting method of the cable gland	Bayonet
Number of conduit inlets	1
Number of openings	N/A
Operating Temperature	-40 - 125°C
Position cable feed	Other
Position of the shackle	None
Series	HC-EVO
Type of housing	Plug case
Type of locking	Single locking lever
UV resistant	false
Width	44mm
With cable screw gland	false
With distance piece	false
With hinged lid	false
With sealing	false
