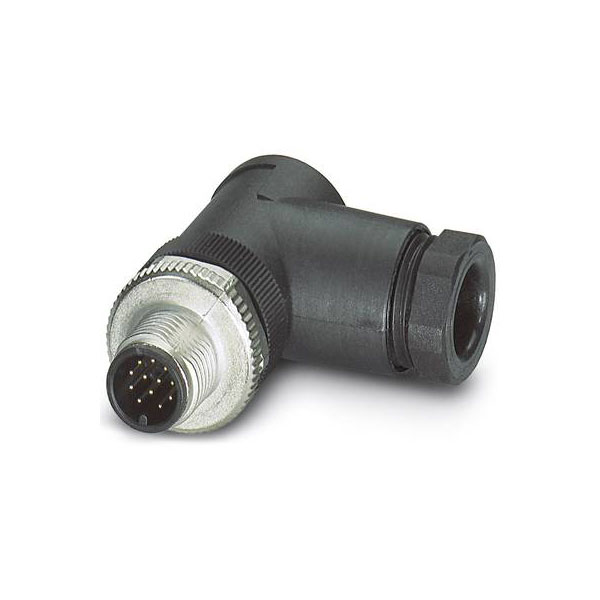

The Phoenix Contact plug-in connector SACC-M12MR-12SOL-PG 9-M 1404421 is an M12 plug designed for robust sensor and actuator connections. Part of the PLUSCON SAC-Sensor Actuator Cabling range, it is suitable for industrial applications requiring reliable and secure linkages. This connector is commonly used in automation systems and machinery to ensure stable sensor/actuator interfacing.
| Connector 1 |
M12 |
| Connector 2 |
Customisable |
| Colour |
Multicolour |
| Type |
Sensor connector |
| Ambient temperature |
-40 - 85°C |
| Coating housing |
Other |
| Coding |
A |
| Conductor Cross Section |
0.25mm² |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.08 - 0.25mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.08 - 0.25mm² |
| Connectable conductor cross section multi-wired |
0.08 - 0.25mm² |
| Connectable conductor cross section solid-core |
0.08 - 0.25mm² |
| Connection |
Soldering |
| Contact Type |
Other |
| Degree of protection (IP), mounted |
IP67 |
| Diameter connector |
20.163603mm |
| For cable outer diameter |
- - -mm |
| Housing Material |
Plastic |
| Inflammability class of insulation material according to UL94 |
HB |
| IP Rating |
IP67 |
| Material of contact surface |
Gold |
| Material thread ring |
Other |
| Min. number of insertion cycles |
100 |
| Misc Attribute |
SACC-M12MR-12SOL-PG 9-M |
| Nominal Current |
1.5A |
| Number of control contacts |
12 |
| Number of data contacts |
0 |
| Number of pins |
12 |
| Number of power contacts |
0 |
| Overvoltage category |
II |
| Pollution degree |
3 |
| Rated current In |
1.5A |
| Rated voltage |
30V |
| Screened |
false |
| Thread size M |
N/A |
| Thread Type |
M12 |
| Type of electric connection |
Soldering connection |
| Type of housing |
Angled |
| Type of locking |
Other |
| With protective conductor |
false |
| With status indication |
false |
