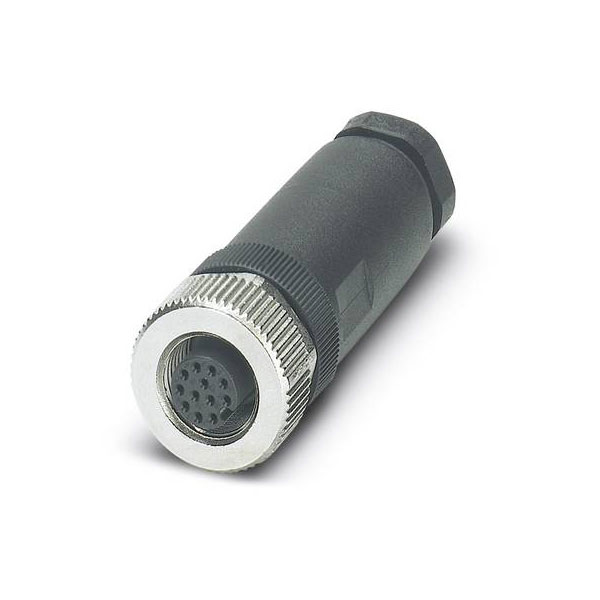

The Plug-in connector SACC-M12FS-12SOL-PG 9-M 1404420 by Phoenix Contact is a sensor/actuator plug specifically designed for industrial applications. It features an M12 socket suitable for sensor and actuator cabling within the PLUSCON range. This connector is typically used in automation systems where reliable and secure connections are essential.
| Connector 1 |
M12 |
| Connector 2 |
Customisable |
| Colour |
Multicolour |
| Type |
Sensor connector |
| Ambient temperature |
-40 - 85°C |
| Coating housing |
Other |
| Coding |
A |
| Conductor Cross Section |
0.25mm² |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.08 - 0.25mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.08 - 0.25mm² |
| Connectable conductor cross section multi-wired |
0.08 - 0.25mm² |
| Connectable conductor cross section solid-core |
0.08 - 0.25mm² |
| Connection |
Soldering |
| Contact Type |
Other |
| Degree of protection (IP), mounted |
IP67 |
| Diameter connector |
20.2mm |
| For cable outer diameter |
- - -mm |
| Housing Material |
Plastic |
| Inflammability class of insulation material according to UL94 |
HB |
| IP Rating |
IP67 |
| Material of contact surface |
Gold |
| Material thread ring |
Other |
| Min. number of insertion cycles |
100 |
| Misc Attribute |
SACC-M12FS-12SOL-PG 9-M |
| Nominal Current |
1.5A |
| Number of control contacts |
12 |
| Number of data contacts |
0 |
| Number of pins |
12 |
| Number of power contacts |
0 |
| Overvoltage category |
II |
| Pollution degree |
3 |
| Rated current In |
1.5A |
| Rated voltage |
30V |
| Screened |
false |
| Thread size M |
N/A |
| Thread Type |
M12 |
| Type of electric connection |
Soldering connection |
| Type of housing |
Straight |
| Type of locking |
Other |
| With protective conductor |
false |
| With status indication |
false |
