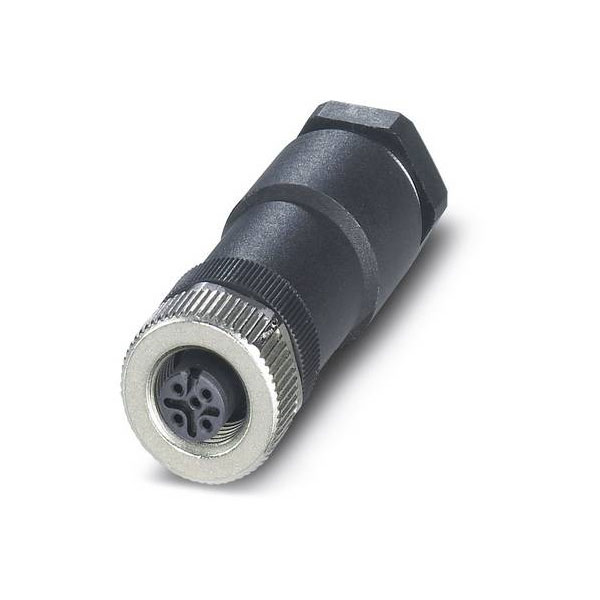

Phoenix Contact 1404416 SACC-M12FS Plug-in Connector 4-Pos Screw Zinc

Phoenix Contact's plug-in connector, model SACC-M12FS-4CON-PG11-M PWR (1404416), features an M12 Speedcon receptacle designed for industrial use. It is part of the PLUSCON range, known for robust sensor and actuator cabling solutions. Typically used in automation systems, it provides reliable connections for sensors and actuators.

Type	Sensor connector
Number of Contacts	4
Connector Size	M12
Gender	Plug
Ambient temperature	-40 - 85°C
Coating housing	Other
Coding	A
Conductor Cross Section	1.50mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.75 - 1.5mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.75 - 1.5mm²
Connectable conductor cross section multi-wired	0.75 - 1.5mm²
Connectable conductor cross section solid-core	0.75 - 1.5mm²
Connection	Screw terminal
Connector 1	M12 socket, straight
Connector 2	Customisable
Contact Type	Other
Degree of protection (IP), mounted	IP67
Diameter connector	20.667539mm
For cable outer diameter	- - -mm
Housing Material	Plastic
Inflammability class of insulation material according to UL94	V0
IP Rating	IP67
Material of contact surface	Nickel
Material thread ring	Other
Min. number of insertion cycles	100
Misc Attribute	SACC-M12FS-4CON-PG11-M PWR
Nominal Current	8A
Nominal Voltage	250V
Number of control contacts	4
Number of data contacts	0
Number of power contacts	0
Overvoltage category	II
Pollution degree	3
Rated current In	8A
Rated voltage	250V
Screened	false
Thread size M	N/A
Thread Type	M12
Type of electric connection	Screw connection
Type of housing	Straight
Type of locking	Other
With protective conductor	false
With status indication	false
