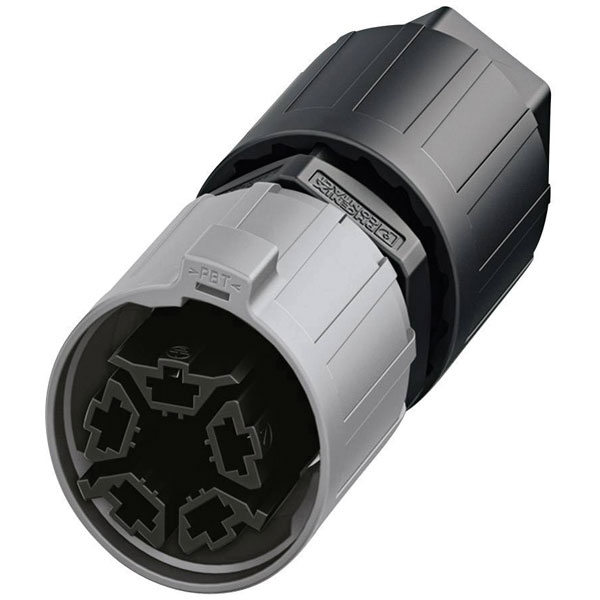

Phoenix Contact 1403782 QUICKON Bullet Connector 4+PE Pins Rapid Fitting

Phoenix Contact's 1403782 bullet connector is part of the QUICKON series designed for efficient and reliable wire connections. This connector features 4 pins plus PE for enhanced electrical connectivity in complex setups. It is typically used in industrial and automation applications requiring robust and rapid installation solutions.

Type	Bullet connector
Wire Gauge AWG	14
Bullet Diameter	39.1mm
Cable Diameter	9 - 16mm
Cable Ø range	9 - 14mm
Cable Ø up to	9mm
Case Material	PA
Colour	Black
Colour coding/contact insert	N/A
Connection	Cut & Clip
Connection Angle	180°
Connection cross section (fine-strand)	- - -mm²
Connection cross section (solid-core)	2.5 - 2.5mm²
Connection Type	N/A
Connector Type	Wire connector
Contact Material	CuZn, tin-plated
Continuity resistance	N/AmOhm
Degree of protection (IP)	N/A
Fire Load	N/AkWh
Halogen free	N/A
Height	N/Amm
Housing Material	N/A
Insulation	PA
Leading Contact (Pe)	Yes
Length	87.8mm
Max. continuous temperature resistance contact part	N/A°C
Max. continuous temperature resistance strain relief	N/A°C
max. cross section	2.5mm²
Maximum Temperature	+85°C
Maximum Wire Size	16 - 14
Mechanical coding	N/A
Min. temperature	-40°C
Misc Attribute	QPD P 4PE2,5 9-16 BK
Model	N/A
Nominal Current	7A
Nominal current - rounded value	7A
Nominal Voltage	150V
Number of connections per pole	N/A
Number of pins	4
Number of Poles	N/A
Pole codification	N/A
Pollution degree	N/A
RAL-number coding/contact insert	N/A
Rated current	N/AA
Rated Surge Voltage	N/AkV
Rated voltage	N/AV
Seal	Screw-type locking
Series	QUICKON
Standards	following UL 94 PA VO · UL-/ CSA
Surface coating contacts	N/A
Total no. of pins	4 + PE
Type of locking	N/A
Width	N/Amm
With strain relief	N/A
