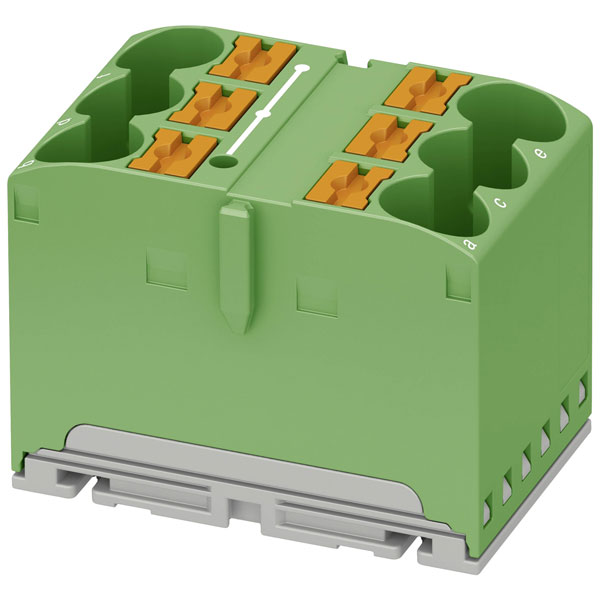

Phoenix Contact 1082391 Distribution block 450V 57A Push-in connection

The Phoenix Contact 1082391 is a distribution block featuring a push-lock connection in a green colour. This component is ideal for switchboard terminals, offering reliable serial terminal continuity. It is typically used in electrical distribution and control applications.

Type	Distribution block
Number of Poles	3
Line Side Connections per Pole	3
Load Side Connections per Pole	3
AWG (min.)	20
Colour	Green
Connection	Push-lock connection
Contamination level	3
Cross section (flexible) (min.)	0.5mm²
Cross section (inflexible) (min.)	0.5mm²
Current Rating	57A
Dim	(L x W x H) 24.50 x 37 x 25.10 mm
Flammability Rating	V0
Height	25.10mm
Insulation	PA.
Insulation Material	PA
Length	24.50mm
Min. stripping length	12mm
Misc Attribute	PTFIX 6X10/S GN
No. of Rows	1
Nominal Voltage	450V
Number of Pins	6
Pins per row	6
Stripping length (max.)	14mm
Width	37mm
Wire Gauge (AWG)	6
Wire Gauge (mm²)	16mm²
