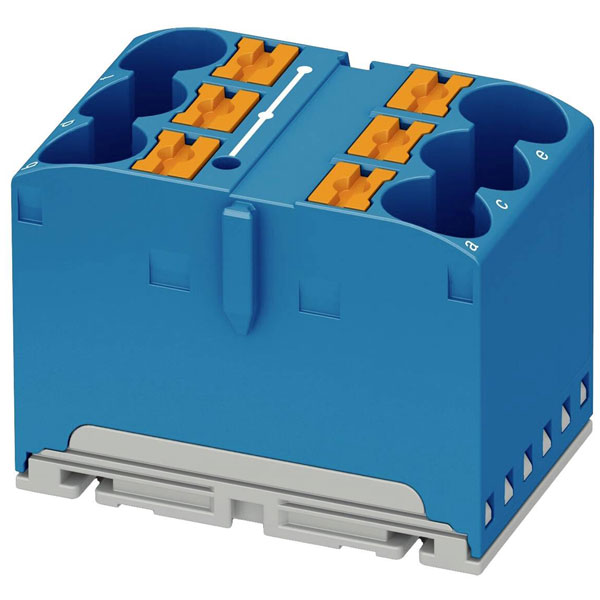

Phoenix Contact 1082388 Distribution block 450V 57A blue push-lock

Phoenix Contact's 1082388 distribution block offers a push-lock connection system. This blue switchboard terminal is ideal for ensuring continuity in wiring tasks. It is typically used in electrical distribution panels and control cabinets.

Type	Distribution block
Number of Poles	3
Line Side Connections per Pole	3
Load Side Connections per Pole	3
AWG (min.)	20
Closing plate required	false
Colour	Blue
Connectable conductor cross section fine-strand with cable end sleeve	- - -mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.5 - 16mm²
Connectable conductor cross section multi-wired	0.5 - 16mm²
Connectable conductor cross section solid-core	0.5 - 16mm²
Connection	Push-lock connection
Contamination level	3
Cross section (flexible) (min.)	0.5mm²
Cross section (inflexible) (min.)	0.5mm²
Current Rating	57A
Depth	25.1mm
Dim	(L x W x H) 24.50 x 37 x 25.10 mm
Explosion-tested version Ex e	N/A
Flammability Rating	V0
Height	25.10mm
Inflammability class of insulation material according to UL94	V0
Insulation	PA.
Insulation Material	PA
Internally connected stages	true
Length	24.50mm
Material insulation body	Thermoplastic
Min. stripping length	12mm
Misc Attribute	PTFIX 6X10/S BU
Mounting method	N/A
No. of Rows	1
Nominal Voltage	450V
Number of clamp positions per level	6
Number of levels	1.0
Number of Pins	6
Operating Temperature	- - -°C
Pins per row	6
Rated current In	57A
Rated voltage	450V
Stripping length (max.)	14mm
Suitable for conductor material	Aluminium/copper
Type of electrical connection 1	Other
Type of electrical connection 2	Other
Width	37mm
Wire Gauge (AWG)	6
Wire Gauge (mm²)	16mm²
